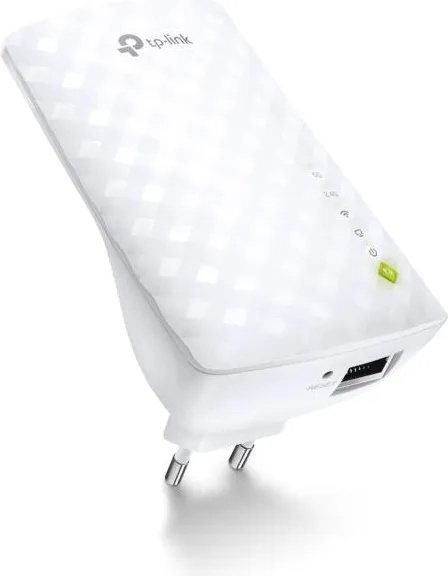

TP-Link RE220 AC750

AC750 Mesh Wi-Fi Range Extender

•


  Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly





•


  Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.





•


  Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices





•


  Dual band speeds up to 750Mbps





•


  Miniature size and wall-mounted design make it easy to deploy and move flexibly





•


  Ethernet port allows the Extender to function as a wireless adapter to connect wired devices




Boost Your Wi-Fi to hard-to-reach Areas

Place the RE220 between your wireless router and wireless devices, expanding Wi-Fi coverage while eliminating Wi-Fi dead zones. The dual-band Wi-Fi up to 750 Mbps can not only extend to 32,00 sq. ft. (300m2) with the router, but also make good use of your high ISP speed , ideal for HD video streaming, online gaming and other bandwidth-intensive tasks.

Simple Two-Step Setup

Step 1: Press the WPS button on the router and RE220 to easily connect the extender to the network. Or connect the

extender via Tether app or Web UI if your router doesn’t support WPS.

Step 2: Relocate the extender to a better location for optimal Wi-Fi coverage with the help of the smart signal indicator light.

ХАРДУЕРНИ ХАРАКТЕРИСТИКИ

Тип контакт:   EU, UK, US, AU

Стандарти и протоколи:   IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Интерфейс:   1 x 10/100M Ethernet Port (RJ45)

Бутон RE (Range Extender):   Button, Reset Button

Консумирана енергия:   About 6.5W

Размери (Ш x Д x В ):   4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)

Антена:   3 x internal

БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ

Честотa:   2.4GHz & 5GHz

Скорост на сигнала

• 5GHz:Up to 433Mbps


• 2.4GHz:Up to 300Mpbs

Чувствителност при приемане

2.4G:

• 270M: -70dBm@10% PER


• 130M: -70dBm@10% PER


• 108M: -73dBm@10% PER


• 54M: -75dBm@10% PER


• 11M: -86dBm@8% PER


• 6M: -92dBm@10% PER


• 1M: -94dBm@8% PER

5G:

• 390M: -60dBm@10% PER


• 29.3M: -83dBm@10% PER


• 180M: -64dBm@10% PER


• 13.5M: -87dBm@10% PER


• 78M: -68dBm@10% PER


• 6.5M: -90dBm@10% PER


• 54M: -75dBm@10% PER


• 6M：-90dBm@10% PER

Предавателна мощност:   < 20 dBm (EIRP)

Безжични режими:   Range Extender

Безжични функции

• WMM (Wi-Fi Multimedia)


• Wireless Statistic


• Domain Login Function

Безжична сигурност

• 64/128/152-bit WEP


• WPA-PSK / WPA2-PSK

ДРУГИ

Сертификати CE, FCC, RoHS

Системни изисквания Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.

Околна среда

• Operating Temperature: 0°C~40°C (32°F~104°F)


• Storage Temperature: -40°C~70°C (-40°F~158°F)


• Operating Humidity: 10%~90% non-condensing


• Storage Humidity: 5%~90% non-condensing
