TP-Link SFP модул TP-Link Omada SM6110-SR, Duplex LC/UPC интерфейс, до 10km, multi-mode (SM6110-SR)

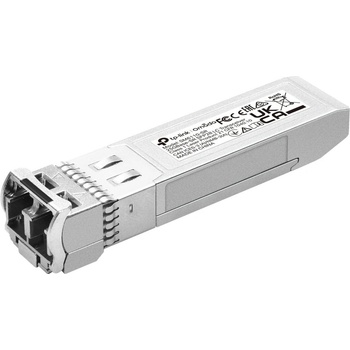

TP-Link Omada SM6110-SR



Omada 25GBase-SR SFP28 LC Transceiver

• Multi-mode SFP+/SFP28 LC Transceiver
• Hot-Pluggable with maximum flexibility
• Supports Digital Diagnostic Monitoring (DDM)
• Low Power Consumption no more than 1 W
• Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)

• Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.

The SM6110-SR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-SR high performance 850nm multi-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps and 300m (OM3) @10.31Gbps respectively.



TransceiverStandards and ProtocolsIEEE 802.3ae, 802.3by
SFF-8402, SFF-8431, SFF-8432, SFF-8472
eCPRI, CPRI
TCP/IPWavelength 850nmPower Supply 3.3VFiber Type 50/125um or 62.5/125um Multi-modeMax. Cable Length 70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps, 300m (OM3) @10.31GbpsSupport Data Rate Dual Rate 25.78 Gbps and 10.31 GbpsConnector Duplex LC/UPCRegulatory Compliance CE, FCC, RoHSEnvironmentOperating Temperature: 0°C to 70°C (32–158 ℉)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Operating Humidity: 10% to 90% RH non-condensing
Storage Humidity: 5% to 90% RH non-condensingHARDWARE FEATURESDDM YesSFP-MSA YesHot Swappable YesDimensions ( W x D x H ) 2.24*0.55*0.53 in (57*14*13.45 mm)
