SG2206MP

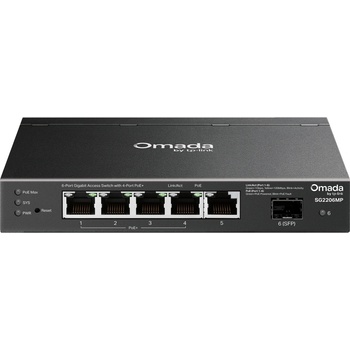

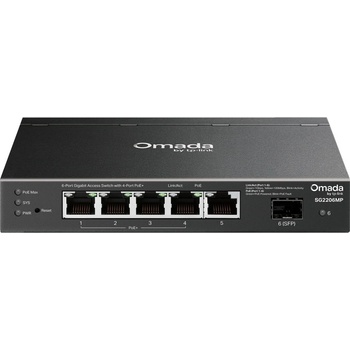

< p>Omada Access 6-Port Gigabit Switch with 4-Port PoE+- 5× Gigabit RJ45 ports (4× PoE+) and 1× Gigabit SFP slot
- 63W total PoE budget with up to 30W for each PoE+ port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Durable metal casing and desktop/wall mounting design
< /p>Category SpecificationHA RDWARE FEATURES Interface4× 10/100/1000 Mbps PoE+ RJ45 Ports 1× 10/100/1000 Mbps RJ45 Port 1× Gigabit SFP SlotPhysical Security Lock √Power Supply 53.5 VDC / 1.31 APoE Ports (RJ45)Standard: 802.3at/af compliant PoE+ Ports: 4 Ports PoE Power Budget: 63 W* Fast PoE Perpetual PoEDimensions (W × D × H) 6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm)Mounting Desktop / Wall MountingMax. Power Consumption 73.7 W (110V/60Hz) (with 63 W PD connected)Max. Heat Dissipation 250.4 BTU/hr (110V/60Hz) (with 63 W PD connected)PERFORMANCE Switching Capacity 12 GbpsPacket Forwarding Rate 8.93 MppsMAC Address Table 8KPacket Buffer Memory 4.1 MbitJumbo Frame 9 KBSOFTWARE FEATURES Quality of Service802.1p CoS/DSCP priority 8 priority queues Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control (Port/Flow based Rating Limit) Storm Control (Multiple Control Modes kbps/ratio, Broadcast/Multicast/Unknown-Unicast Control)L2 and L2+ Features16 IP Interfaces (IPv4/IPv6) Static Routing: 32 IPv4/IPv6 Static Routes DHCP Server / Relay (Interface/VLAN/L2 Relay) Static/Proxy/Gratuitous ARP Link Aggregation Spanning Tree Protocol (STP, RSTP, MSTP) with protections Loopback Detection 802.3x Flow Control Mirroring DLDP LLDP/LLDP-MEDL2 Multicast511 IPv4/IPv6 multicast groups IGMP Snooping Multicast VLAN Registration (MVR) Multicast Filtering Limited IP Multicast (256 profiles / 16 entries each)Advanced FeaturesAutomatic Device Discovery† Batch Configuration† Batch Firmware Upgrade† Intelligent Network Monitoring† Abnormal Event Warnings† Unified Configuration† Reboot Schedule†VLANVLAN Groups: up to 4K 802.1Q Tag VLAN MAC VLAN (16 Entries) Protocol VLAN GVRP Voice VLANAccess Control ListUp to 230 entries Time-Range / Time-based ACL MAC/IP/IPv6 ACL Combined ACL Permit/Deny Rules Actions: Mirroring, Redirect, Rate Limit, QoS Remark Binding: Port/VLANSecurityIP-MAC-Port Binding AAA, 802.1X (Port/MAC auth, PAP/EAP-MD5, MAB, Guest VLAN, RADIUS) IP/IPv6-MAC Binding (512 entries) DHCP/DHCPv6 Snooping ARP/ND Inspection & Snooping IP/IPv6 Source Guard (253 IPv4, 183 IPv6 entries) DoS Defend DHCP Filter Port Security (Static/Dynamic/Permanent, 64 MAC/port) Storm Control (Broadcast/Multicast/Unicast, kbps/ratio) Port Isolation Secure HTTPS (SSLv3/TLS 1.2) SSHv1/v2 CLI IP/Port/MAC Access ControlIPv6IPv6 Static Routing & ACL Dual IPv4/IPv6 IPv6 Interface MLD Snooping Neighbor Discovery MTU Discovery ICMPv6 TCPv6/UDPv6 Apps: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), SNMPv6, SSHv6, SSLv6, HTTP/HTTPS, TFTPv6MIBsMIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RADIUS MIBs (Auth & Accounting) Remote Ping/Traceroute MIB (RFC2925) TP-Link Private MIBs RMON (RFC1757, groups 1,2, 3,9)MANAGEMENT FEATURES Omada App Yes (requires Omada Controller)Centralized ManagementOmada Cloud-Based Controller (≥v5.15. 22) Omada Hardware Controller (≥v5.15. 20) Omada Software Controller (≥v5.15. 20)Cloud Access Yes (via Omada Controller)Zero-Touch Provisioning Yes (via Omada Cloud-Based Controller)Management ToolsWeb GUI CLI (Telnet) SNMP v1/v2c/v3 with Trap/Inform RMON (1,2, 3,9) SDM Template DHCP/BOOTP Client Dual Image/Dual Config CPU Monitoring Cable Diagnostics IEEE 802.1az EEE SNTP System Log DDM OAMOTHERS Certification CE, FCC, RoHSPackage ContentsSG2206MP Power Adapter Power Cord Rackmount Kit Rubber Feet Installation GuideSystem Requirements Windows 98SE/NT/2000/XP/Vista/7/8/10/11, macOS, NetWare, UNIX, LinuxEnvironmentOperating Temp: -5–40 ℃ (23–104 ℉) Storage Temp: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
