TP-Link SG5428XF
SG5428XF Omada Campus 24-Port SFP Stackable Lite L3 Managed Switch with 4× 10G Slots 20× Gigabit SFP slots and 4× Gigabit RJ45/SFP Combo ports 4× 10 Gbps SFP+ slots 128 Gbps switching...
869,00 €|1699,62 лв.*
Безплатна доставка, В наличност
Вид:
Препоръчани оферти (3)
TP-Link SG5428XF
TP-Link Omada Campus SG5428XF с 4× 10G порта (SG5428XF)
Безплатно
24-портов SFP Stackable Lite L3 управляван комутатор TP-Link Omada Campus SG5428XF с 4× 10G порта (SG5428XF)
24-портов SFP Stackable Lite L3 управляван комутатор TP-Link Omada Campus SG5428XF с 4× 10G порта (SG5428XF)
24-портов SFP Stackable Lite L3 управляван комутатор TP-Link Omada Campus SG5428XF с 4× 10G порта (SG5428XF)
24-портов SFP Stackable Lite L3 управляван комутатор TP-Link Omada Campus SG5428XF с 4× 10G порта (SG5428XF)
Най-евтини оферти (8)
TP-Link SG5428XF
TP-Link Omada Campus SG5428XF с 4× 10G порта (SG5428XF)
Безплатно
24-портов SFP Stackable Lite L3 управляван комутатор TP-Link Omada Campus SG5428XF с 4? 10G порта (SG5428XF)
24-портов SFP Stackable Lite L3 управляван комутатор TP-Link Omada Campus SG5428XF с 4? 10G порта (SG5428XF)
Безплатно
Суич TP-Link Omada Campus SG5428XF, 1000 Mbps, 28 порта, 20x 10/100/1000Mbps SFP, 4 10/100/1000Mbps RJ45/SFP, 4x 10/100/1000/10000Mbps SFP+ (SG5428XF)
Суич TP-Link Omada Campus SG5428XF, 1000 Mbps, 28 порта, 20x 10/100/1000Mbps SFP, 4 10/100/1000Mbps RJ45/SFP, 4x 10/100/1000/10000Mbps SFP+ (SG5428XF)
24-портов SFP Stackable Lite L3 (SG5428XF)
24-портов SFP Stackable Lite L3 управляван комутатор TP-Link Omada Campus SG5428XF с 4× 10G порта (SG5428XF)
24-портов SFP Stackable Lite L3 управляван комутатор TP-Link Omada Campus SG5428XF с 4× 10G порта (SG5428XF)
24-портов SFP Stackable Lite L3 управляван комутатор TP-Link Omada Campus S (SG5428XF_VZ)
24-портов SFP Stackable Lite L3 управляван комутатор TP-Link Omada Campus S (SG5428XF_VZ)
Omada Campus SG5428XF, 24-портов SFP Stackable Lite L3 управляван комутатор с 4× 10G порта (SG5428XF)
Omada Campus SG5428XF, 24-портов SFP Stackable Lite L3 управляван комутатор с 4× 10G порта (SG5428XF)
Безплатно
24-портов SFP Stackable Lite L3 управляван комутатор TP-Link Omada Campus SG5428XF с 4× 10G порта (SG5428XF)
24-портов SFP Stackable Lite L3 управляван комутатор TP-Link Omada Campus SG5428XF с 4× 10G порта (SG5428XF)
Описание на продукта
SG5428XF Omada Campus 24-Port SFP Stackable Lite L3 Managed Switch with 4× 10G Slots 20× Gigabit SFP slots and 4× Gigabit RJ45/SFP Combo ports 4× 10 Gbps SFP+ slots 128 Gbps switching...
Параметри на продукта
Производител
TP-Link
Параметри на продукта
Производител
TP-Link
Описание на продукта

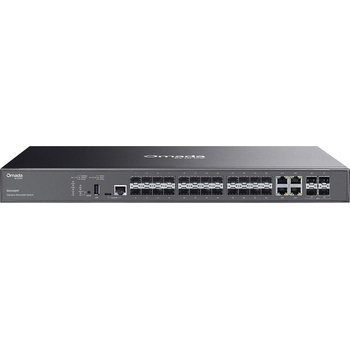

SG5428XF
Omada Campus 24-Port SFP Stackable Lite L3 Managed Switch with 4× 10G Slots
- 20× Gigabit SFP slots and 4× Gigabit RJ45/SFP Combo ports
- 4× 10 Gbps SFP+ slots
- 128 Gbps switching capacity per unit
- Dual internal power supplies provide mutual backup
- Physical stacking up to 4 units for built-in redundancy and performance
- L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
- Security strategies: ACL, Port Security, DoS Defend, 802.1X
- ERPS supports rapid protection and recovery in a ring topology
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
Category< /strong> SpecificationHA RDWARE FEATURES Interface 20× 100/1000 Mbps SFP Slots 4× Gigabit RJ45/SFP Combo Ports 4× 1/10 Gbps SFP+ Slots 1× USB 2.0 Port 1× RJ45 Console Port 1× USB Type-C Console PortFan Quantity 1 FanPower Supply 100–240 V~ 50/60 HzDimensions (W × D × H) 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)Mounting RackmountableMax. Power Consumption 28.3 W (220V/50Hz @ 25 °C)28.98 W (110V/60Hz @ 25 °C)Max. Heat Dissipation 96.503 BTU/hr (220V/50Hz @ 25 °C)98.822 BTU/hr (110V/60Hz @ 25 °C)PERFORMANCE Switching Capacity 128 Gbps per UnitStacking Stacking Number: 4Stacking Port: 10G SFP+ Slot (all uplink ports usable)Stacking Bandwidth: Up to 80 Gbps (4 stacking ports)Packet Forwarding Rate 95.23 MppsMAC Address Table 16KPacket Buffer Memory 12 MbitJumbo Frame 9 KBSOFTWARE FEATURES Quality of Service (QoS) 8 Priority QueuesPort / IEEE 802.1p / DSCP PriorityQueue Min-BandwidthSchedule Mode (SP, WRR, SP+WRR)Rate Limit & Storm ControlVoice VLANUser-Defined OUIQoS Remark (802.1P, DSCP)L3 Features IPv4/IPv6 Interfaces (Max 128 each)ARP (512 Static / 3,600 Dynamic)ND Dynamic Entries: 3,600Static Routes (IPv4 512 / IPv6 128)Host Routes (IPv4 1,024 / IPv6 890)Network Routes (IPv4 1,796 / IPv6 450)RIP v1/v2, RIPngOSPF v2/v3Proxy ARPDHCP Server (64 IP Pools, 8,000 Leases, 1,000 Manual Bindings)DHCP Relay (Interface & VLAN)L2 & L2+ Features Link AggregationSpanning Tree ProtocolLoopback Detection (Port/VLAN)802.3x Flow ControlERPSPort Mirroring & RSPANIGMP & MLD SnoopingL2 Multicast (Max 2,000 Entries)Fast Leave, MVRStatic Multicast GroupsMulticast FilteringAdvanced Features Automatic Device DiscoveryBatch ConfigurationBatch Firmware UpgradeIntelligent MonitoringAbnormal Event WarningsUnified ConfigurationReboot Schedule802.3ah Ethernet Link OAML2PTDLDPDDMsFlowVLAN 4K VLAN Groups (802.1Q)Tagged VLANMAC VLAN (60 Entries)Multicast VLANManagement VLANQinQ (Max 256 Entries)GVRPProtocol VLAN (16 Templates / 12 Entries)Voice VLANPrivate VLANSecurity Port IsolationCPU-DefendDynamic ARP InspectionDoS DefendIP-MAC-Port Binding (1,024 Entries)DHCP SnoopingIPv4/IPv6 Source GuardDHCPv6 & ND SnoopingStatic/Dynamic Port Security (64 MAC per port)Storm Control (kbps/ratio)802.1X (Port/MAC Base, VLAN Assignment, MAB, Guest VLAN, RADIUS)AAA (TACACS+)HTTPS (SSLv3/TLS 1.2)SSHv2IP/Port/MAC ACLMANAGEMENT FEATURES Omada App Yes (Requires Omada Controller)Centralized Management Omada Cloud-Based Controller (v5.15. 22+)Omada Hardware Controller (v5.15. 20+)Omada Software Controller (v5.15. 20+)Cloud Access Yes (Requires Omada Controller)Zero-Touch Provisioning Yes (Cloud-Based Controller Required)Management Capabilities Web GUICLI (Console/Telnet)SNMP v1/v2c/v3RMON (1,2, 3,9)SDM TemplateDHCP/BOOTP ClientLLDP/LLDP-MEDDHCP Auto InstallDual Image & ConfigCPU MonitoringCable DiagnosticsPassword RecoverySNTPSystem LogIEEE 802.3az EEEOTHERS System Requirements Windows 98SE/NT/2000/XP/Vista/7/8/10/11macOSNetW areUNIXLinux
Вижте от къде можете да закупите продукта:
TP-Link Omada Campus SG5428XF с 4× 10G порта (SG5428XF)
Безплатно
24-портов SFP Stackable Lite L3 управляван комутатор TP-Link Omada Campus SG5428XF с 4× 10G порта (SG5428XF)
24-портов SFP Stackable Lite L3 управляван комутатор TP-Link Omada Campus SG5428XF с 4× 10G порта (SG5428XF)
24-портов SFP Stackable Lite L3 управляван комутатор TP-Link Omada Campus SG5428XF с 4× 10G порта (SG5428XF)
24-портов SFP Stackable Lite L3 управляван комутатор TP-Link Omada Campus SG5428XF с 4× 10G порта (SG5428XF)
Липсва или е неправилен важен параметър? Предоставената информация е само за ориентиране, затова ви съветваме да проверите дали предлаганият продукт има ключовите параметри от които се нуждаете, преди да купите от магазина по ваш избор. Въпреки че се стремим към максимална точност на информацията, за съжаление не можем винаги да гарантираме 100% съответствие. Цените на продуктите са с включен ДДС.
