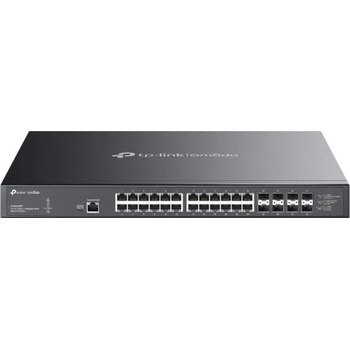

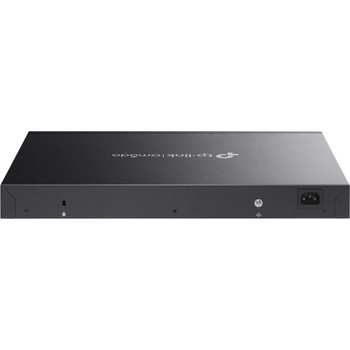

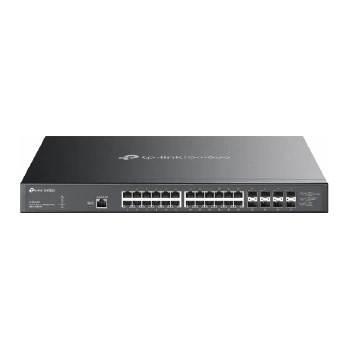

TP-Link SX3832MPP

TP-Link SX3832MPP



Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++

• 24× 1/2.5/5/10 Gbps RJ45 PoE++ ports
• 8× 1/10 Gbps SFP+ slots
• 770 W total PoE budget*, up to 90 W PoE out per port**
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI,  SNMP,  and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports rapid protection and recovery in a ring topology
• Durable metal casing and rack-mountable design





Featur e SpecificationInterface 24× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps PoE++ RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX), 8× 1/10G SFP+ Slots, 1× RJ45 Console Port, 1× USB Type C Console PortFan Quantity 4Physical Security Lock √Power Supply 100-240 V AC~50/60 HzPoE Ports (RJ45) Standard: 802.3bt/at/af compliant; PoE++ Ports (802.3bt/at/af PoE): 24 Ports, up to 90 W per port; Power Budget: 770 WDimensions (W × D × H) 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)Mounting Rack MountableMax. Power Consumption 1,010. 2 W (110V/60Hz with 770 W PD connected); 953.7 W (220V/50Hz with 770 W PD connected)Max. Heat Dissipation 3,444. 7 BTU/hr (110V/60Hz with 770 W PD connected); 3,252. 2 BTU/hr (220V/50Hz with 770 W PD connected)Switching Capacity 640 GbpsPacket Forwarding Rate 240 MppsMAC Address Table 32 KPacket Buffer Memory 24 MbitJumbo Frame 9 KBQuality of Service 8 priority queues; 802.1p CoS/DSCP priority; Queue scheduling: SP, WRR, SP+WRR; Bandwidth Control: Port/Flow-based Rating Limiting; Smoother Performance; QoS remark (802.1P Remark, DSCP Remark)L2 and L2+ Features 128 IP Interfaces (IPv4/IPv6); Static Routing: 48 IPv4/IPv6 Static Routes; Static ARP: 128 static entries; 510 ARP Entries; Proxy ARP; Gratuitous ARP; DHCP Server; DHCP Relay (Interface & VLAN); DHCP L2 Relay; Link Aggregation; Spanning Tree Protocol; Loopback Detection; 802.3x Flow Control; MirroringL2 Multicast Supports 4,000 IGMP groups; IGMP Snooping; IGMP Authentication; Multicast VLAN Registration (MVR); MLD Snooping; Multicast Filtering: 256 profiles, 16 entries per profileAdvanced Features Automatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot ScheduleISP Features L2PT (Layer 2 Protocol Tunneling); Device Link Detect Protocol (DLDP); PPPoE ID Insertion; ERPS; 802.3ah Ethernet Link OAM; DDMVLAN VLAN Group: Max 4K VLAN Groups; 802.1q Tagged VLAN; MAC VLAN: 256 Entries; Protocol VLAN: Template 16, Protocol VLAN 12; Private VLAN; GVRP; VLAN VPN: VLAN Mapping, VLAN Replace; Voice VLANAccess Control List Time-based ACL; MAC ACL: Source/Destination MAC, VLAN ID, User Priority, Ether Type; IP ACL: Source/Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS; Combined ACL; Packet Content ACL; IPv6 ACL; Policies: Mirroring, Redirect, Rate Limit, QoS Remark; ACL applies to Port/VLANSecurity IP-MAC-Port Binding (512 Entries); DHCP Snooping; ARP Inspection; IPv4 Source Guard: 96 Entries; IPv6-MAC-Port Binding (512 Entries); DHCPv6 Snooping; ND Detection & Snooping; IPv6 Source Guard: 95 Entries; DoS Defend; DHCP Filter; Static/Dynamic Port Security: Up to 64 MAC per port; Broadcast/Multicast/Unicast Storm Control; 802.1X (Port/MAC Authentication, VLAN Assignment, MAB, Guest VLAN, Radius); AAA (TACACS+); Port Isolation; Secure web/CLI management (HTTPS/SSH)IPv6 Dual IPv4/IPv6; MLD Snooping; IPv6 ACL; IPv6 Interface; Static IPv6 Routing; IPv6 Neighbor Discovery; MTU discovery; ICMPv6; TCPv6/UDPv6; DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, HTTP/HTTPS, IPv6 TFTPMIBs MIB II (RFC1213); Interface MIB (RFC2233); Ethernet Interface MIB (RFC1643); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); RMON MIB (RFC2819); RMON2 MIB (RFC2021); Radius Accounting & Authentication Client MIB (RFC2620/2618); Remote Ping/Traceroute MIB (RFC2925); TP-Link Private MIBOmada App Yes (requires Omada Hardware/Cloud/Software Controller)Centralized Management Omada Cloud-Based Controller; Omada Hardware Controller; Omada Software ControllerCloud Access Yes (requires Omada Hardware/Cloud/Software Controller)Zero-Touch Provisioning Yes (requires Omada Cloud-Based Controller)Management Features Web-based GUI; CLI via console/telnet; SNMP v1/v2c/v3 (Trap/Inform, RMON 1/2/3/9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP AutoInstall; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; IEEE 802.3az EEE; Password Recovery; SNTP; System Log
