TP-Link TBE550E

TP-Link Archer TBE550E

BE9300 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter

• Unparalleled Tri-Band Speed — Boost your overall speeds up to 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 688 Mbps (2.4 GHz)
• Wi-Fi 7 Standard — Unleash the full potential of the 6 GHz band to double the bandwidth of the last generation.
• Wider Signal Coverage — Two multi-directional antennas with a magnetized base are designed for optimal signal reception.
• Reliable Bluetooth 5.4 – Security and reliability improvement than last-gen high-speed Bluetooth 5.3
• Improved Security – The latest security enhancement, WPA3, provides enhanced protection in personal password safety.
• Fast Installation with USB Drive — Plug in the resource USB drive provided with Archer TBE550E to quickly drive without network. Enjoy the simple and friendly adapter installation.
• Multicolor Wi-Fi Status Lighting — Equipped with vibrant LED lighting effects, the base provides an intuitive indication of network status, enhancing both functionality and aesthetics.



Unrivaled Wi-Fi 7 Technology

Wi-Fi 7 unlocks the full potential of the 6 GHz band, doubling the last generation's bandwidth. TBE550E delivers astonishing wireless speeds and flexible bandwidth combine, facilitating instant multi-stream media playback. Install, connect, and enjoy astonishing wireless speeds.





Maximized Coverage with Flexible Antenna Placement

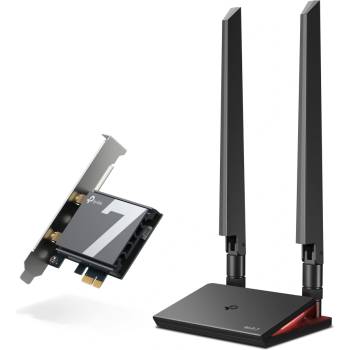

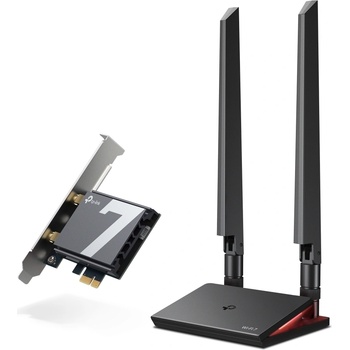

Archer TBE550E has two multi-directional and high-performance antennas with a magnetized base. Place the antenna base anywhere on your desktop to find the optimal location for signal reception.







Reliable Bluetooth 5.4

Bluetooth 5.4 Building upon the high-speed and wide-range capabilities of its predecessor, the updated Bluetooth 5.4 offers enhanced reliability and security, ensuring seamless interoperability with game controllers, headphones, keyboards, and more.





Refined Security

The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.





Fast Installation via USB Drive

Easily set up your Archer TBE550E using the included USB drive—even without network connection. Experience a straightforward and user-friendly installation process.





HARDWARE FEATURESDimensions 3.7 × 4.8 × 0.8 in (95.2 ×120.8 ×21.5 mm)Antenna Type 2× High-Performance Tri-Band AntennasWIRELESS FEATURESWireless Standards IEEE 802.11a/b/g/n/ac/ax/beWLAN Signal Rate 6 GHz:
11be: Up to 5760 Mbps(dynamic)
11ax: Up t0 2402Mbps(dynamic)
5 GHz:
11be: Up to 2880 Mbps(dynamic)
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1732 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11be: Up to 688 Mbps(dynamic)
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)WLAN Reception Sensitivity 6 GHz:
11ax HE20 MCS0: -94 dBm
11be EHT320 MCS13: -44dBm
5 GHz:
11ac VHT20 MCS0: -94 dBm
11be EHT160 MCS13: -48dBm
2.4 GHz:
11n HT20 MSC0: -95 dBm
11be EHT40 MSC13: -56dBmWLAN Transmit Power 2.4 GHz: 24dBm(FCC) (EIRP)/ 20dBm(CE) (EIRP)
5 GHz: 24dBm(FCC) (EIRP) /20dBm(CE) (EIRP)
6 GHz: 20dBm(FCC) (EIRP) /20dBm(CE) (EIRP)WLAN Modes Infrastructure modeWireless Security WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
