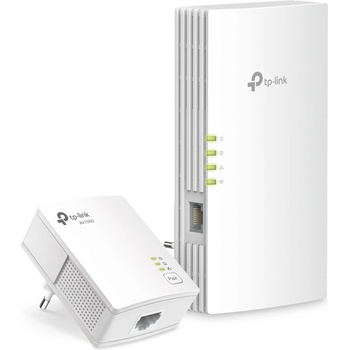

TP-Link TL-WPA7817 KIT

TP-Link TL-WPA7817 KIT



AV1000 Speeds and 300 Meters Range

Using advanced HomePlug AV2 technology, TL-WPA7817 KIT ensures stable and high-speed Wi-Fi and wired connection, providing data transmissions of up to 1000 Mbps * over the electrical wiring for ranges up to 300 meters † . Stream in HD, game online and download large files without interruption thanks to reliable powerline links.



Flexibly Create Whole Home Mesh WiFi

If you have any dead zones at home, just add another EasyMesh-compatible device to further form your whole home mesh WiFi. No more searching for a stable connection.



Gigabit Ethernet for Fast Wired Connections

One Gigabit Ethernet port provides reliable high-speed wired connection for a bandwidth intensive device, such as game consoles, smart TVs, STB and more, or connects multiple devices by adding a switch.

PC

Game Console

Smart TV

Laptop



< p> Specifications



Hardware features

Transmission SpeedsPowerline: Up to 1000 Mbps
Ethernet: 10/100/1000 MbpsTransmission Distance Up to 300 meters/1000 feet over existing electrical wiringStandards and ProtocolsHomePlug AV2
IEEE 1901
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.11b/g/n (2.4 GHz)
IEEE 802.11a/n/ac/ax (5 GHz)Compatibility Compatible with all HomePlug AV & AV2 standard powerline adaptersPlug Type EUInterfaceTL-WPA7817: 1× Gigabit Ethernet Port
TL-PA7017: 1× Gigabit Ethernet PortButtonPair
LED On/Off
Wi-Fi Clone
ResetMax. Power ConsumptionTL-WPA7817: Maximum: 11W, Typical: 6.5W
TL-PA7017: Maximum: 2.9W, Typical: 2.6WLEDPower
Powerline
Ethernet
Wi-Fi (2.4 GHz)
Wi-Fi (5 GHz)



Wireless features

Wireless StandardsTL-WPA7517: IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ac 2.4 GHz
TL-PA7017: N/AFrequencyTL-WPA7817: 2.4 GHz and 5 GHz
TL-PA7017: N/ASignal RateTL-WPA7817: 300 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz
TL-PA7017: N/A



Software features

Mesh Technology EasyMesh-Compatible
Without replacing your existing devices or buying a whole new WiFi ecosystem, EasyMesh helps you create a more flexible network that covers your entire home with EasyMesh-compatible products. SecurityPowerline: 128-bit AES Encryption
Wireless: WPA-PSK / WPA2-PSK, WEP EncrptionsManagement Features TP-Link tpPLC App, or download new tpPLC Utility on PCs. Modulation Technology OFDM (PLC)



Other

Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
Port: 80/443   Protocol: TCP
DHCP Server
IP address assignment (DHCP)
Port: 67   Protocol: UDP
Onemesh management
Onemesh Configuration (Synchronization & Communication)
Port: 20001   Protocol: TCP
Port: 20002   Protocol: UDP
App management
Manage and configure device through app
Port: 1040   Protocol: UDPCertification CE, RoHSSystem Requirements Windows 10/8.1/8/7/Vista/XP, Mac OS, LinuxEnvironmentOperating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% non-condensing
