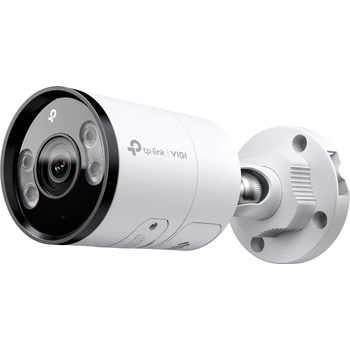

TP-Link VIGI C385(4mm)



TP-Link C385

4mm Lens





Sharper Vision, Smarter Protection

4MP Outdoor Full-Color Bullet Network Camera









Human & Vehicle Classification

Distinguish humans and vehicles from other objects and receive more accurate event notifications.







Specs:

CAMERAImage Sensor 1/2.7 Progressive Scan CMOSShutter Speed 1/3 to 1/10000 sSlow Shutter YesMinimum Illumination 0.005 Lux; 0 Lux with IR/White lightDay/Night Mechanism IR Cut FilterDay/Night Switch Unified/ Scheduled/ AutoLENSType Fixed Focal LensFocal Length 2.8/4 mmAperture F1.6FOV Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6°Lens Mount M12*P 0.5DORI Distance Detect: 107 m
Observe: 44 m
Recognize: 21 m
Identify: 11 mAngle Adjustment (Manual)Range Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°ILLUMINATORIR LEDQuantity: 2
Range: 30m
Wavelength: 850nmWhite LEDQuantity: 2
Range: 30mIlluminator On/Off Control Auto/Scheduled/Always on/Always offVIDEOMax. Resolution 3840 X 2160Main StreamFrame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

Resolution:
3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080,
1280x720

Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps. Sub-StreamFrame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

Resolution:
704x576,640x480, 352x288, 320x240

Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps. Bit Rate Control CBR, VBRVideo CompressionMain Stream: H. 265+/H. 265/H. 264+/H. 264
Sub-Stream: H. 265/H. 264H. 264 Type High ProfileH. 264+ Main Stream SupportedH. 265 Type Main ProfileH. 265+ Main Stream SupportedVideo Bit RateMain Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 KbpsImageImage SettingsMirror
Brightness
Contrast
Saturation
Sharpness
Exposure
WDR
White Balance
Prevent Overexposure to Infrared Light
HLC Adjustable by Client SoftwareImage Enhancement BLC/3D DNR/HLC/SmartIRWide Dynamic Range 120 dBSNR ≥ 52 dBImage Parameters Switch YesPrivacy Mask Up to 4 MasksROI 1 RegionOSD Setting YesAUDIOAudio Communication Two-Way AudioAudio Input YesAudio Output YesAudio Compression YesAudio Sampling Rate 8KHzEnvironment Noise Filtering YesAudio Bit Rate 64 Kbps(G. 711 alaw)NETWORKProtocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLSONVIF YesAPI Open Network Video Interface (Profile S)Simultaneous Live View 3 Main Streams & 3 Sub-StreamsClient VIGI App, VIGI Security Manager, Web UI, VIGI VMSWeb BrowserGoogle Chrome 57 and above
Firefox 52 and above
Safari 11 and above
Microsoft Edge 91 and aboveCloud YesSecurity Password Protection, HTTPS Encryption, IP Address Filter, Digest AuthenticationALARM AND EVENT MANAGEMENTSmart EventHuman & Vehicle Classification
Intrusion Detection
Line-Crossing Detection
Region Entering Detection
Region Exiting Detection
Object Abandoned Detection
Object Removal Detection
Loitering Detection
Smart Frame
People Detection
Vehicle DetectionBasic EventMotion Detection
Video Tampering Detection
Exception ( Illegal Login)
Scene Change DetectionAlarm LinkageMemory Card Video Recording
Message Push
Audible Warning
White Light FlashingLinkage Method N/AOutput Notification Message PushINTERFACESNetwork Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoEAlarm N/AReset Button YesPower DC Power PortOn-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB**Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the CameraBuilt-in Speaker YesAudio N/AGENERALOperating Temperature -30–60 °CStorage Temperature -40–60 °COperating Humidity 95% or Less (Non-Condensing)Storage Humidity 95% or Less (Non-Condensing)Package ContentsVIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting AccessoriesMaterial MetalNet Weight 0.525 KgPower Supply12V DC ± 5%, Max. 10.5 W, 5.5 mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 11.5 WProtection IP67Product Dimensions (L x W x H) 74 × 184 × 74 mm
