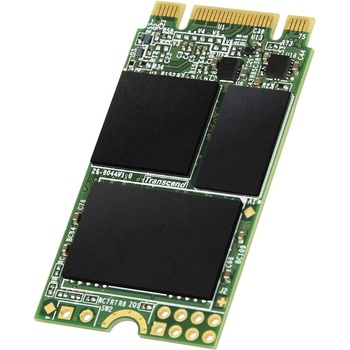

Transcend 2TB M.2 (TS2TMTS425S)

Transcend's SATA III 6Gb/s M. 2 SSD 425S comes with a small form factor and high-quality 3D NAND flash, upgrading your Ultrabooks and laptops in a snap. The SSD is designed with multiple firmware optimization technologies like SLC caching and LDPC ECC mechanism, which enhance the storage reliability and prolong the drive lifespan. A great difference can be made with a small upgrade.



Designed for slim devices

The height of the M. 2 SSD 425S is only 42mm, making it ideal for Ultrabooks and lightweight notebooks. Thinner and lighter than normal hard drives, the M. 2 SSD 425S gives your computer a much needed boost while saving space!



Respond fast

Dedicated to maximizing high-performance computing, the M. 2 SSD 425S features 4k random file read and write speeds of up to 80,000 IOPS. It delivers incredibly short loading times and an almost instant response for heavy graphics and multimedia applications.



Remarkable reliability

Despite its extra-small dimensions, the M. 2 SSD 425S contains advanced features that allow the data to be stored more reliably and for the SSD to have a longer lifespan.

Dimensions 42.0 mm x 22.0 mm x 3.58 mm (1.65" x 0.87" x 0.14")Weight 5 g (0.18 oz)Type M. 2 2242Bus Interface SATA III 6Gb/sFlash Type 3D NAND flashCapacity 2 TBOperating Temperature 0°C (32°F) ~ 70°C (158°F)Operating Voltage 3.3V±5%Sequential Read/Write (CrystalDiskMark)

2 TB

Up to 550/500 MB/s

4K Random Read/Write (IOmeter)

2 TB

Up to 55,000/80,000 IOPS

Terabytes Written (TBW)

2 TB

720 TBW

Mean Time Between Failures (MTBF) 2,000, 000 hour(s)Drive Writes Per Day (DWPD) 0.3 (3 yrs)Note

Speed may vary due to host hardware, software, usage, and storage capacity.

The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.

Terabytes Written (TBW) expresses the endurance under the highest capacity.

Certificate

CE

UKCA

FCC

BSMI

KC

RCM

Operating System

Microsoft Windows 7 or later

Linux Kernel 2.6. 31 or later

TRIM & NCQ Command YesS. M. A. R. T. YesDDR3 DRAM Cache NoAdvanced Garbage Collection YesDevSleep Mode YesRAID Engine YesLDPC Coding Yes
