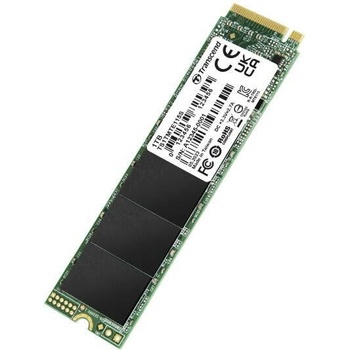

Transcend MTE115S 1TB M.2 (TS1TMTE115S)

Transcend 115S

Upgrade your computer performance to a whole new level with Transcend's PCIe SSD 115S! Boasting the slick PCIe Gen 3x4 interface and slim M. 2 2280 size, the PCIe SSD 115S is the perfect speedy and sizable companion for your desktops, laptops, and ultrabooks!

Astounding Performance

Transcend's PCIe SSD 115S follows NVMe 1.4 specifications and comes with the PCIe Gen3 x4 interface, meaning four lanes are used for transmitting and receiving data simultaneously, resulting in excellent performance of read speeds up to 3,200MB/s and write speeds up to 2,000MB/s.



The PCIe SSD 115S comes in the M. 2 2280 form factor, perfect for desktops, laptops, and ultrabooks! The low-power design makes PCIe performance possible with the best power efficiency.



Dimensions

• Single-sided: 80 mm x 22 mm x 2.23 mm


• Double-sided: 80 mm x 22 mm x 3.58 mm

Weight

• 8 g

Type

• M. 2 2280

Interface

Bus Interface

• NVMe PCIe Gen3 x4

Storage

Flash Type

• 3D NAND flash

Capacity

• 1TB

Operating Environment

Operating Temperature

• 0°C (32°F) ~ 70°C (158°F)

Operating Voltage

• 3.3V±5%

Performance

Sequential Read/Write (CrystalDiskMark)

•
  1 TB
  up to 3,200/2,000 MB/s

4K Random Read/Write (IOmeter)

• 1 TB


• up to 250,000/170,000 IOPS

Terabytes Written (TBW)

•
  1 TB
  400 TBW

Mean Time Between Failures (MTBF)

• 2,000, 000 hour(s)

Drive Writes Per Day (DWPD)

• 0.2 (5 yrs)

Note

• Speed may vary due to host hardware, software, usage, and storage capacity.


• The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.


• Terabytes Written (TBW) expresses the endurance under the highest capacity.


• Some motherboards only provide PCIe x2 connections for the M. 2 slot, creating a bottleneck on even the fastest drives.

System Requirement

Operating System

• Microsoft Windows 7 or later


• Linux Kernel 2.6. 31 or later
