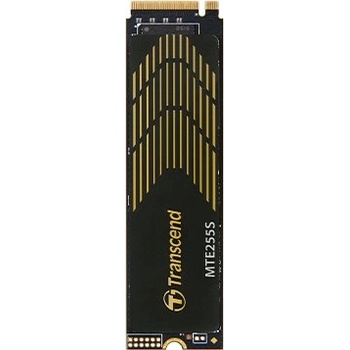

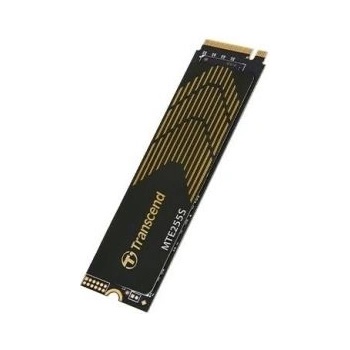

Transcend MTE255S 1TB (TS1TMTE255S)

Transcend MTE255S

Superior Performance That Meets Your Needs

Transcend's PCIe SSD 255S complies with the latest NVMe 1.4 standard, supporting the PCIe Gen4 x4 interface. Its multi-channel controller delivers sequential R/W speeds of up to 7,400/6,500 MB/s, and IOPS up to 700K, delivering captivating performance and response times for desktops and laptops like you've never seen before!

Note: Performance is based on the CrystalDiskMark v8.0. 4.

As Cool As Always

Transcend's PCIe SSD 255S has an integrated ultra-thin graphene heatsink to improve heat dissipation. The high conductivity of graphene cools the system down quickly, ensuring stable device performance and reliability.

Low Power Consumption

Transcend's PCIe SSD 255S comes in an M. 2 2280 form factor. Its single-sided design is perfect for desktops, laptops, and ultrabooks! The low-power design makes PCIe performance possible with the best power efficiency.

Better Endurance, Higher Reliability

Transcend's PCIe SSD 255S is engineered with LDPC (Low-Density Parity Check) coding, a powerful ECC algorithm, to help keep data secure. Engineered with a dynamic thermal throttling mechanism, Transcend's PCIe SSD 255S delivers superior endurance and stability for high-end applications.

Specifications

Appearance

Type

M. 2 2280

Dimensions

Single-sided 80 mm x 22 mm x 2.42 mm (3.15" x 0.87" x 0.1")

Weight

9 g (0.32 oz)

Heatsink Type

Graphene heatsink

Inter face

Bus Interface

NVMe PCIe Gen4 x4

Storage

Flash Type

3D NAND flash

Capacity

1 TB

Operating Environment

Operating Temperature

0°C (32°F) ~ 70°C (158°F)

Operating Voltage

3.3V±5%

Performance

Sequential Read/Write (CrystalDiskMark)

Up to 7,400/5,200 MB/s

4K Random Read/Write (IOmeter)

Up to 660,000/500,000 IOPS

Terabytes Written (TBW)

600 TBW

Mean Time Between Failures (MTBF)

2,000, 000 hour(s)

Drive Writes Per Day (DWPD)

0.33 (5 yrs)

System Requirement

Operating System

Microsoft Windows 7 or later

Linux Kernel 2.6. 31 or later

Technolo gy

S. M. A. R. T.

Yes

Advanced Garbage Collection

Yes

RAID Engine

No

LDPC Coding

Yes

DRAM Cache

No

No tes

• Speed may vary due to host hardware, software, usage, and storage capacity.
• The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
• Some motherboards only provide PCIe x2 connections for the M. 2 slot, creating a bottleneck on even the fastest drives.
• Please make sure that your computer has a M. 2 slot.
