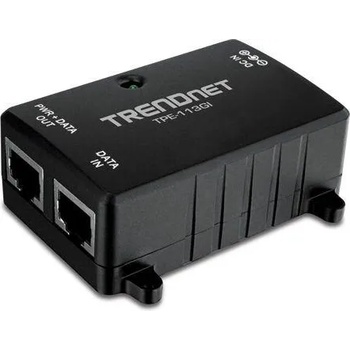

TRENDnet TPE-113GI

The Gigabit Power over Ethernet Injector, model TPE-113GI, combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet (PoE) signal. Connect this device to a non-PoE switch and then run an Ethernet cable for up to 100 meters (328 Ft. ) to network PoE devices.

No need to buy a PoE switch—use an existing open port from a non-PoE switch to save installation and equipment costs when installing TRENDnet PoE access points and IP cameras in remote locations. This compact device safeguards valuable network equipment with short circuit protection. Quickly create an integrated PoE and non-PoE network at Gigabit speeds.

Specifications

• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab Gigabit Ethernet
• IEEE 802.3af Power over Ethernet

• 10 Mbps: UTP/STP Cat. 5 and 5e up to 100 Meters
• 100 Mbps: UTP/STP Cat. 5, and 5e up to 100 Meters
• Gigabit: UTP/STP Cat 5e and 6 up to 100 meters

• 1 x 10/100/1000 Mbps DATA-IN (Data only)
• 1 x 10/100/1000 Mbps PWR+DATA OUT (Data + Power)

• Pair 1: Pin 1, 2
• Pair 2: Pin 3, 6

• Input: 100~240V, 50~60Hz, 0.4A max.
• Output: 48V DC, 0.4A 18W max.

• 15.4 Watts (max. )

• 70 x 45 x 25mm (2.75 x 1.8 x 1 in. )

• 45 g (1.6 oz. )

• Operation: 0°C~50°C (32°F~ 122°F)
• Storage: -20°C~60°C (-4°F~140 °F)

• Max. 90% (non-condensing)

• CE, FCC
