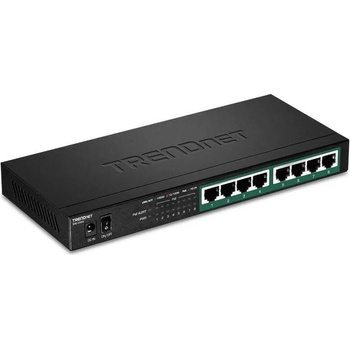

TRENDnet TPE-TG83

TRENDnet's 8-Port Gigabit PoE+ Switch, model TPE-TG83, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. This compact network switch provides eight gigabit PoE+ ports with a total PoE power budget of 65W. The TPE-TG83 PoE+ switch allows you to network PoE devices, such as wireless access points, IP cameras, VoIP phones, IP video encoders, access controls, and more. It features a fanless design, and has a convenient option for wall mounting.

PoE+

A 65W PoE power budget supports up to eight Power over Ethernet devices.

Gigabit Ports

Eight gigabit PoE+ ports provide a 16Gbps switching capacity to support edge network installations.

Compact Design

Compact, lightweight, and fanless, this switch is designed for desktops and quiet environments.

Jumbo Frame

Sends Jumbo Frames (up to 9KB) for increased performance

Fanle ss

Fanless design is ideal for quiet environments that require silent operation

Specifications

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x
• IEEE 802.3p
• IEEE 802.3af
• IEEE 802.3at

• 8 x Gigabit PoE+ ports
• LED indicators

• Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
• Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
• Gigabit Ethernet: 2000Mbps (full duplex)

• Switch Fabric: 16Gbps
• RAM Buffer: 192KB
• MAC Address Table: 4K entries
• Jumbo Frames: 9KB
• Forwarding rate: 11.9Mpps (64-byte packet size)

• 802.1p Class of Service (CoS)
• Wall mountable

• Input: 100 – 240 V AC, 50/60Hz, 2.5A
• Output: 55V DC, 1.3A external power adapter
• Max. consumption: 71W

• PoE budget: 65W
• PoE Mode A: Pins 1,2 for power and pins 3,6 for power

• 0° – 40° C (32° – 104° F)

• Max. 90% non-condensing

• 240 x 105 x 27mm (9.45 x 4.13 x 1.1 in. )

• 580g (20.45 oz. )

• CE
• FCC
• LVD
