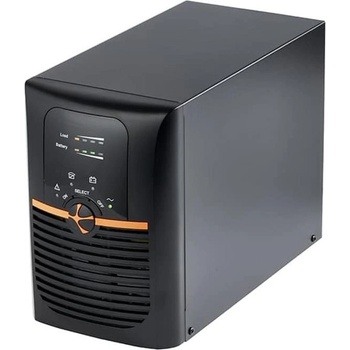

Tuncmatik UPS Tunchmatik Newtech PRO3 ONE LED 1 kVA, 1000VA/1000W, On-Line, Tower (TSK10091)

Newtech PRO3 ONE LED 1 kVA

True double conversion online technology

Online UPSs are the most suitable choice, especially for computers and other sensitive devices. These types of UPSs completely isolate your sensitive devices from the network, charge their batteries with electricity from the network, and feed your connected sensitive devices with the help of various filters. As a result, all unwanted situations that may occur in the network are filtered by the online UPS and your sensitive devices are fed with clean energy.



SpecificationDetailsPhase Single phase and earthRated Voltage 200 / 208 / 220 / 230 / 240 VACLow Voltage Transfer 160Vac ±5% @100–80% load; 140Vac ±5% @80–70%; 120Vac ±5% @70–60%; 110Vac ±5% @60–0% load ( 83% (DC mode)Battery Type 12V 7AhExternal Battery Type Depends on external battery capacityNumber of Batteries 2External Battery Quantity 2Backup Time Depends on battery capacityTypical Charging Time 4 hours to 90% capacityCharging Voltage 27.4 VDC ±1%Charging Voltage (External) 27.4 VDC ±1%Charging Current 1ACharging Current (External) 12AOverload Protection Network & Battery Mode ( 130% → bypass after 3 sec. 35–40℃: 105–110% → bypass after 1 min; >110% → bypass after 3 secBypass Mode Protection 8A (input fuse)Short Circuit Output cut offOver Temperature Network Mode: transfer to bypass; Battery Mode: UPS shuts downLow Battery Alarm sounds, UPS shuts downOperating Temperature 0℃ ~ 40℃Storage Temperature -25℃ ~ 55℃Humidity 20–90% RH @ 0–40℃ (non-condensing)Altitude < 1500 mNoise Level < 50 dBA @ 1 meterDimensions (DxWxH) 293 × 144 × 209 mm (Standard / External Battery Model)Weight 8.9 kg / 4.2 kg (External Battery Model)
