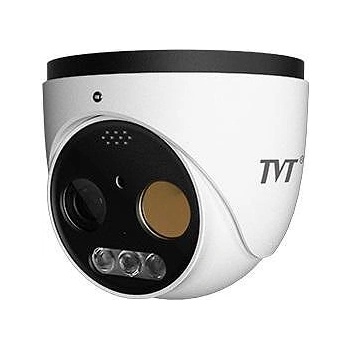

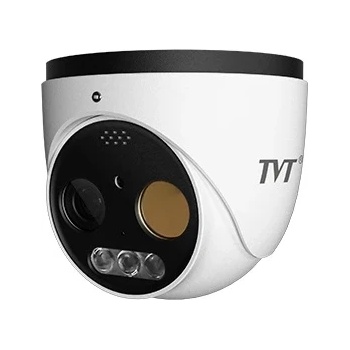

TVT TD-5525E1-VT1(3/PE)

Features

Thermal:

Resolution: 256×192

Thermal lens：3.2mm

12μm，NETD: ≤50mK (@25°C, F#=1.0)

Temperature range: -20°C~150°C

Multi-palette: white hot, black hot, iron oxide red, rainbow, etc.

Sound and light warning, temperature exception alarm, fire detection

Intelligent analytics: region intrusion/entrance/exiting (human/motor vehicle classification), line crossing detection (human/motor vehicle classification)

Supports dual image fusion

Supports temperature overlay on video stream

Optical:

5MP (2592 × 1944) @30 fps

ICR auto switch, true day/night vision

20~30m IR night view distance

3D DNR, true WDR (120dB), HLC, BLC, Smart IR, distortion image correction, ROI etc.

Intelligent analytics: region intrusion/entrance/exiting detection (human/motor vehicle/non-motor vehicle classification), line crossing detection (human/motor vehicle/non-motor vehicle classification), target counting by line/area (human/vehicle /non-motor vehicle classification), face detection, face capture, illegal parking detection, loitering detection, abandoned/missing object detection

Specification

Model TD-5525E1-VT1 Thermal Module Detector Type12m 256×192 Vanadium oxide uncooled focal plane detectorResponse Waveband8m-14mNETD≤50mK (@25°C, F#=1.0)IRIS TypeFixed [email protected]@F1.0Field of View(H×V)56°×42.2°24.8°×18.7°Min. Focusing Distance0.5 m1.1mColor PalettesBlack hot, White hot, iron oxide red, rainbow, etc. DRI Distance Human (0.75m)Detection: 133m(436ft) Recognition: 33m(108ft)
Identification:17m(56ft)Detection: 292m(958ft) Recognition: 73m(240ft)
Identification:36m(118ft)DRI Distance Vehicle (2.3m)Detection: 409m (1342ft) Recognition: 102m(335ft)
Identification:51m(167ft)Detection: 894m(2933ft) Recognition: 224m(735ft)
Identification:112m(367ft) Visible Light Module Image Sensor1/ 2.7" CMOSImage Size2592 × 1944Electronic Shutter1/3 s ~ 1 / 100000 sIris TypeFixed IrisMin. Illumination0.02 [email protected], AGC ON; 0 lux with IR
0.03 [email protected], AGC ON; 0 lux with [email protected]@F2.0Field of View(H×V)81°×56.7°38°×27.5°Wide Dynamic Range120dBBLCYesHLCYesDefogYesDigital NR2D / 3D DNR Image Video CompressionH. 265 / H. 264 / MJPEGH. 264 Compression StandardBaseline Profile / Main Profile / High ProfileBit Rate TypeVBR/CBRBit Rate128Kbps~ 8MbpsResolutionThermal: 720P (1280 × 720), D1, CIF, 480 × 240Optical: 5MP (2592 × 1944), 4MP (2592 × 1520),
2K (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080),
720P (1280 × 720), D1, CIF, 480 × 240Main StreamOptical: 60Hz: 5MP/4MP/2K/3MP/1080P/720P (1~30fps);
50Hz: 5MP/4MP/2K/3MP/1080P/720P (1~25fps)Thermal: 256 × 192
(the resolution of output image is 720P/D1/CIF/480×240) (1~25fps)Sub StreamOptical: 60Hz: 720P/D1/CIF (1~30fps); 50Hz: 720P/D1/CIF (1~25fps)Third StreamOptical: 60Hz: D1/CIF/480×240(1~30fps); 50Hz: D1/CIF/480×240(1~25fps)Dual Image FusionYesTemperature OverlayTemperature can be overlaid on video streamImage SettingsROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browserAudio CompressionG711A/UROI8 regions; each ROI to be configured separately Interfaces NetworkRJ 45Video OutputNoAudio1CH 3.5mm MIC/LIN in audio input; 1CH built-in MIC; 1CH built-in speakerStorageBuilt-in micro-SD card slot; up to 256GBResetYesRS 485NoAlarm1CH alarm input; 1CH alarm output Functions Temperature Range-20°C~150°C (-4°F~302°F)Temperature Accuracy±8°CTemperature alarmOver temperature alarm, low temperature alarmTemperature Measurement10 rules in total (Point: up to 10; Line: 2, recommended; Area: 2, recommended)Fire DetectionDynamic fire detection, up to 10 fire points detectableRemote MonitoringWeb browser/NVMS2. X/Mobile APPOnline ConnectionSupport simultaneous monitoring for up to 10 users; Support multi-stream real time transmissionNetwork ProtocolUDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoSInterface ProtocolONVIFStorageNetwork remote storage; micro-SD card storageSmart AlarmMotion detection, SD card error, SD card full, IP address conflict, Cable connection, video exception, audio exceptionIntelligent AnalyticsOptical: region intrusion/entrance/exiting detection/line crossing detection (human/motor vehicle/non-motor vehicle
classification), target counting by line/ area(human/motor vehicle/non-motor vehicle classification), face detection,
illegal parking detection, loitering detection, abandoned/missing object detection Thermal: fire detection,

temperature exception alarm, region intrusion/entrance/ exiting detection/line crossing detection

(human/motor vehicle classification)

AI function can be enabled simultaneously on thermal and optical channelsGeneral FunctionWatermark, IP address filtering, video mask, heartbeat, password protection, image distortion correctionSound & Light WarningWhite light flashing alarm and sound alarm supportedPoEYes, IEEE802.3 af, class0IR Distance20~ 30mProtection GradeIP66 Others Power SupplyDC12V / PoEPower Consumption< 9WOperating EnvironmentHumidity: less than 95 % (non-condensing)
-30 °C ~ 60 °C (-22°F~140°F)CertificateCE, FCCEnvironment ProtectionComplies with Directive EU RoHS, WEEE (2012/19/EU), directive 94/62/EC and REACH(EC1907/2006)Dimensions (mm)Ø111.5 × 99.6Weight (net)Approx. 0.68KGInstallation
