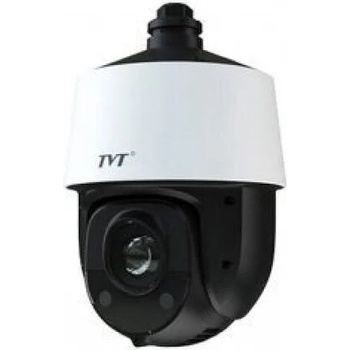

TVT TD-8443IS2N(PE/25M/AR16)

Features

BSI+NIR progressive scan CMOS

Up to 2560x1440 resolution

Mini illumination:

Color: 0.01 lux @ (F1.65 AGC ON)

0 Lux with IR

25x optical zoom, Accurate and fast focusing

WDR, 3D DNR, Smart IR 150m

Smart H. 265+/H. 265/H. 264+/H. 264

Intelligent Video content analytics

Smart tracking of human/vehicle

Smart detection and perimeter protection

ONVIF, API and SDK

PoE+ and DC12V

IP66, -40°C~60°C, ADC12 & PC/GF

Specification

Camera Module TD-8443IS2N(PE/25M/AR15) TD-8443IS2N(PE/25M/AR16) Image sensor1/2.5 BSI+NIR progressive scan CMOS1/2.7 BSI+NIR progressive scan CMOSPixel size2.2um2.0umEffective Pixels2592(H)x1944(V)2884(H)x1624(V)Mini . IlluminationColor ： 0.01Lux @ (F1.65 ， AGC ON) ；B/W ： 0.002Lux @(F1.65 ， AGC ON);0Lux with IRImage settingFlip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, etc. adjusted by clientShutter Speed50Hz: 1/25s ~1/25,000s; 60Hz: 1/30s ~ 1/30,000sWhite BalanceAuto/Manual/Indoor/OutdoorGain controlAuto/ManualDay & Night controlAuto/Manual, time scheduleIris controlAuto/ManualSNR≥52dB3D DNRAuto/ManualAE EnhancementBLC, HLC, WDRPrivacy Mask4 areas, up to 4 masks in the same framePicture overlayLogo picture could be overlaid on video with 128x128pixels, 24bits BMP formatOSD overlayMax 15 characters/line, 8 lines, white or red font color Lens Focus lengthf=4.8-120mm lens, 25x optical zoomZoom SpeedApprox. 3.6s (optical zoom, wide-tele)Field of ViewHorizontal: 55° ~2.4°±5%; Vertical: 33° ~ 1.4°±5%; Diagonal: 61.5° ~ 2.8°±5% (wide-tele)Working distanceWide: 1.0m ~ INF; tele: 1.5m ~ INFAperture RangeF1.65 ~ F3.8 (wide-tele)Iris typeAuto DC-IRIS, 16 StopsIRCut typeRemovable IRCut filterDORI distanceDetect(25px/m)Observe(63px/m)Rec ognize(125px/m)Identify(250px/m)2400m(78 74 f. t. )952m(3124 f. t. )480m(1772 f. t. )240m(787 f. t. ) PTZ Pan Range360°endlessPan speedConfigurable, from 0.1~200°/s; Preset speed: 240°/sTilt RangeFrom -5° to 90°, auto flipTilt SpeedConfigurable, from 0.1°~ 200°/s, Preset speed: 240°/sProportional ZoomYesPreset360Cruise8 cruises, up to 16 presets for each cruiseTrace
