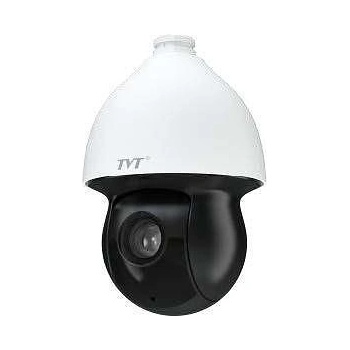

TVT TD-8543IE3N(PE/40M/AR35)

Features

Ultra fast rotation and tracking speed, dual belts for longer life.

Excellent low light performance

Super long IR supplement light distance

Deep-learning engine, support human/vehicles detection, auto-tracking

IP66/IK10/6KV Strong protection, 7x24 Hours outdoor harsh weather

Stable supply-chain, long product life circle

Confirms to data protection regulations of major countries.



Camera Module Image sensor1/2.8" progressive scan CMOS image sensor, with BSI and NIR++, Dual GainMax resolution2560x1440Mini. IlluminationColor ： 0.005 Lux @ (F1.2 ， AGC ON) ； B/W ： 0.001 Lux @(F1.2 ， AGC ON);0Lux with IRImage settingFlip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, etc. adjusted by clientShutter Speed60Hz: 1/30s – 1/30,000s@30fps;50Hz:1/25s~1/25,000s@25f psWhite BalanceAuto/Manual/Indoor/OutdoorGain controlAuto/ManualDay & Night controlAuto/Manual , time schedule. Iris controlAuto/ManualSNR≥52dB3D DNRAuto/ManualAE EnhancementBLC, HLC, DWDRDigital Zoom16XElectronical StabilizerN/A for this versionPrivacy Mask4 areas, up to 8 mask per request. Picture overlayLogo picture could be overlaid on video with 128x128pixels, 24bits formatOSD overlayMax 15 characters/line, 8 lines, white or red font color Lens Focus lengthf=4.5-180mm lens, 40x optical zoomZoom SpeedApprox. 5.2s (optical zoom, wide-tele)Field of ViewH: 59.1° ~1.8°; V: 38.4° ~ 1.1° ; D: 68.9° ~ 2.1° (wide-tele) ±5%Image distanceWide: 1.0m ~ INF; tele: 1.5m ~ INFAperture RangeMax F1.2Iris TypeDC_IRISIRCut typeRemovable IRCut filterDORI distanceFocus lengthDetectObserveRecognizeIdentifyf=4. 5mm99.6m(326.8 f. t. )39.5m(129.7 f. t. )19.9m(65.4 f. t. )10m(32.7 f. t. )f=180mm3600m(8126.6f. t. )1429m(3250.7 f. t. )720m(1625.3f. t. )360m(812.7 f. t. ) PTZ Pan Range360°endlessPan speedConfigurable, from 0.1~390°/s; Preset speed: 420°/sTilt RangeFrom -25° to 155°, auto flip at 90°Tilt SpeedConfigurable, from 0.1°~270°/s, Preset speed: 300°/sProportional ZoomYesPreset360Cruise8 cruises, up to 16 presets for each cruisesTrace4 traces, record time over 3 minutes for each tracePower off memorySupportAction modePreset/Cruise/Trace/Auto Scan/Random Scan3D PositioningSupportPTZ Position DisplaySupportSchedule TaskPreset/Cruise/Trace/Random Scan/Boundary Scanning /Dome reboot/ De-frost/Water Removal IR IR Distance350m (1148 f. t. ) , 850nm IRSmart IRYes Network Main stream50Hz: 25fps: 2560x1440,1920×1080,1280×960,1280×720 ; 60Hz: 30fps: 2560x1440,1920×1080,1280×960,1280×720 Sub stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288);  60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)Third  Stream50Hz:25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60Hz:30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)Video compressionH. 265+/H. 265/H. 264+/H. 264/MJPEGH. 264 StandardH. 264/AVC codec BP/MP/HP, Level 5.1H. 265 StandardH. 265/HEVC codec MP, level 5.0Video Bit Rate64 Kbps to 16MbpsAudio compressionG. 711 A/UAudio Bit Rate64K bpsProtocolsHTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, DHCP, PPPoE, P2PUser / HostUp to 16 users, 3 levels: Administrator, Advanced User and Normal UserSecurity MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, IEEE802.1x port-based network access control; IP address filteringAPIONVIF A/G/Q/S/T, support TVT SDK and third-party management platformClientTVT N9000 1.4. 7, TVT NVMS 2.0; and the third-party client, free iOS and Android AppWeb BrowserIE8-11 with plug-in; Edge, Chrome, Firefox with plugin free Smart Features Basic eventMotion detection, Video tampering alarm, Exception(Network disconnected, IP address conflict, SD full, SD error)Face recognizeFace detection & capturing, Max 17faces per scene. Road trafficVehicle detecting and trackingSmart DetectionTripwire, Bi-directional tripwire, Illegal intrusion detection, Region entrance detection, Region exiting detection, etc.   More VCA per request. Smart Trackingsupport smart tracking of human or vehicle, manual/auto System Integration Alarm Interface1 Alarm input(Dry contact); 1 Alarm output
