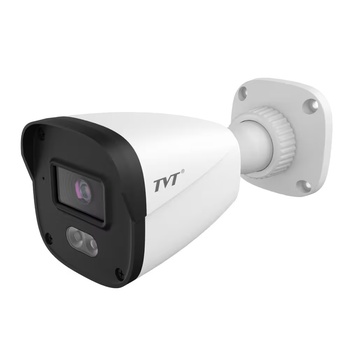

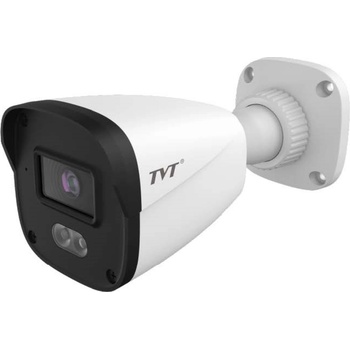

TVT TD-9420S4L-D(D/PN/AW1)

Features

H. 265+ /H. 265 /H. 264+ /H. 264/MJPEG coding

Max. resolution: 2MP (1920 × 1080)

Auto day/night switch

3D DNR, WDR, HLC, BLC, etc.

ROI coding

10~20m white light view distance; 10~20m IR view distance

PoE power supply

IP 67 ingress protection

Support dual streams

Support remote monitoring by smart phones& tablet PCs with iOS and Android OS

Support line crossing detection, region intrusion detection and video exception detection

Specification

Model TD-9420S4L-D Camera Image Sensor1 / 3" CMOSImage Size1920×1080Electronic Shutter1 / 3s ~ 1 / 100000sIris TypeFixed IrisMin. Illumination0.0462 lux @F2.2, AGC ON; 0 lux (Illumination on)[email protected], Horizontal FoV: 93°; Vertical FoV:52°;Diagonal FoV:106°
[email protected], Horizontal FoV:74°; Vertical FoV:40°; Diagonal FoV:85°FocusFixedLens MountM12Day&NightICRWide Dynamic RangeDigital WDRBLCYesHLCYesDefogYesDigital NRYesS/N Ratio≥50dBAngle AdjustmentPan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360° DORI Distance LensDetectObserveRecognizeIdent ify2.8mm44m(144ft)18m(59ft)9m(30ft)4m(13 ft)3.6mm59m(194ft)24m(79ft)12m(39ft)6m(2 0ft) Image Video CompressionMain stream: H. 265+ / H. 265 / H. 264 + / H. 264 Sub stream: H. 265+ / H. 265 / H. 264 + / H. 264H. 265 Compression StandardMain [email protected] High TierResolution1080P (1920×1080), 720P (1280×720), D1, VGA (640×480), 640×360,480×240, CIFMain Stream1080P/720P (60Hz: 1~30fps; 50Hz: 1~25fps)Sub StreamD1/VGA/640× 360/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps)Bit Rate64 Kbps ~ 3 MbpsBit Rate TypeVBR / CBRAudio CompressionG711A/UImage SettingsROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc.
adjustable through client software or web browserROIEach ROI to be configured separately Interfaces NetworkRJ45Video OutputNoAudio1CH built-in MICStorageNoResetNo Functions Remote MonitoringWeb browser /TVT NVR/NVMS2. X/Mobile APPWeb BrowserIE 11 (plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+Online ConnectionSupport simultaneous monitoring for up to 3 users; Support multi-stream real time transmissionNetwork Protocol

UDP, IPv4, IPv6, DHCP, DDNS, NTP, SNMP, RTSP, 802.1x, UPnP, SMTP, FTP, HTTP, HTTPS, QoS

Interface ProtocolONVIFStorageNetwork remote storageMotion DetectionYesSmart EventRegion intrusion detection, line crossing detection, video exception (scene change, video blur and abnormal color detection)General FunctionWatermark, video mask, heartbeatSecurityVideo encryption, firmware encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTPPoEYes, IEEE802.3afSupplement Light RangeIR range: 10 ~ 20 m; white light range:10 ~ 20 mIngress ProtectionIP67 Others Power SupplyPoE power supplyPower Consumption< 5WOperating Environment- 20 °C ~ 55 °C (-4°F~131°F); Humidity: less than 95 % (non-condensing)Storage Environment- 20 °C ~ 60°C (-4°F~140°F), Humidity: less than 95 % (non-condensing)Dimensions (mm)162.1 × 74.8 × 73.8Weight (net)Approx. 0.24KGInstallationCeiling mounting; Wall mountingCertificateCE, FCCEnvironmental ProtectionComplies with Directive EU RoHS, WEEE (2012/19/EU), directive 94/62/EC and REACH(EC1907/2006)
