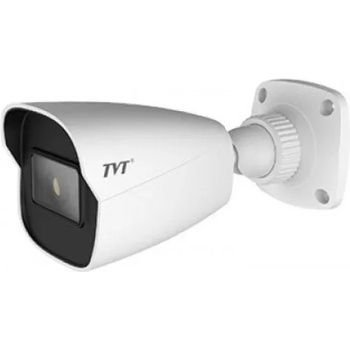

TVT TD-9441E3

Нов фърмуер

Софтуер за обновяване на фърмуера

TD-9441E3(D/PE/AR2) Fixed Lens 2.8mm, 3.6mm

Features

4MP ( 2592 × 1520 ) H. 265 full real time coding

Max. resolution: 2592 × 1520

ICR auto switch, true day / night

20 ~ 30m IR night view distance

3D DNR, true WDR, HLC, BLC, Defog, Smart IR and ROI coding

Hardware reset

Built-in micro SD card slot, up to 128GB

1CH audio input

DC12V/PoE power supply

IP67ingress protection

Support three streams

P2P function optional

Support remote monitoring by smart phones & tablet PCs with iOS and Android OS

Intelligent analytics:Object abandoned/missing detection, region entrance/exiting/intrusion detection(human/vehicle classification), line crossing detection(human/vehicle classification), video tampering detection, scene change detection, face detection, face capture, rowd density detection, heat map, human/vehicle counting, human tracking

Dimension

ModelTD-944 1E3CameraImage Sensor1 / 3 "CMOSImage Size2592 × 1520Electronic Shutter1 / 30 s ~ 1 / 100000 sIris TypeFixed IrisMin. Illumination0.005 [email protected], AGC ON; 0 lux with IR
0.0028 [email protected], AGC ON; 0 lux with IRLens2.8 mm @F1.6, horizontal field of view: 100.4°
3.6 mm @F1.6, horizontal field of view: 80.6°Lens MountM12Wide Dynamic Range120dBBLCYesHLCYesDefogYesDigital NR3D DNRAngle AdjustmentPan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°ImageVideo CompressionSmart H. 265 / H. 265+ / H. 265 / Smart H. 264 / H. 264+ / H. 264 / MJPEGH. 264 Compression StandardBaseline Profile/Main Profile/High ProfileResolution4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240Main Stream4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps )Sub Stream720P/D1/CIF ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )Third StreamD1/CIF/480x240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )Bit Rate
