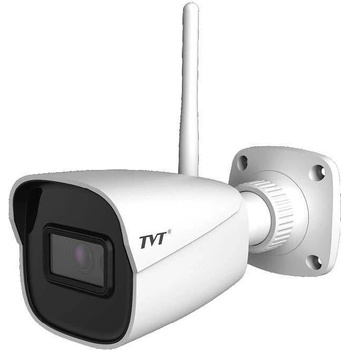

TVT TD-9441S4(D/PE/WF/AR2)

Features

H. 265 /H. 264/MJPEG coding

Max. resolution: 4MP ( 2560 × 1440)

Fixed Lens：2.8mm

ICR auto switch, true day / night vision

3D DNR, WDR, HLC, BLC, smart IR, etc.

ROI coding

20~30m IR night view distance

Built-in micro SD card slot, up to 256GB

DC12V/PoE power supply

IP 67 ingress protection

Support Wi-Fi

Support three streams

Support remote monitoring by PC

Intelligent analytics

Does not support peer-to-peer connectivity.

Specification

Model TD-9441S4 Camera Image Sensor1 / 3" CMOSImage Size2560×1440Electronic Shutter1 / 1s ~ 1 / 100000sIris TypeFixed IrisMin. Illumination0.005 lux @F1.6, AGC ON; 0 lux with [email protected], Horizontal FoV: 94°;Vertical FoV:50°;Diagonal FoV:115°
FocusFixedLens MountM12Day&NightICRWide Dynamic Range120dBBLCYesHLCYesDigital NRYesS/N ratio≥50dBAngle AdjustmentPan: 0°~360°; Tilt:0°~80°;Rotation: 0°~360° Image Video CompressionMain  stream:  H. 265   /   H. 264
 Sub/Third stream: H. 265 / H. 264 / MJPEGvH. 265 Compression StandardMain [email protected] High TierResolution4MP ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ),
720P ( 1280 × 720 ), D1, VGA (640×480), 480× 240, CIFMain Stream60Hz: 4MP/3MP/1080P/720P(1~30fps); 50Hz: 4MP/3MP/1080P/720P(1~25fps)Sub Stream60Hz: 720P/D1/VGA/CIF (1~30fps);50Hz: 720P/D1/VGA/CIF (1~25fps)Third Stream60Hz: D1/480× 240/CIF (1~30fps);50Hz: D1/480× 240/CIF(1~25fps)Bit Rate64 Kbps ~ 8 MbpsBit Rate TypeVBR / CBRImage SettingsROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc.
adjustable through client software or web browserROIEach ROI to be configured separately Interfaces NetworkRJ 45 10M/100M self-adaptive Ethernet portVideo OutputNoAudio1CH audio inputStorageBuilt-in micro SD card slot, up to 256GBResetYes Functions Remote MonitoringWeb browser /TVT NVR/NVMS2. XWeb BrowserIE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+Online ConnectionSupport simultaneous monitoring for up to 3 users; Support multi-stream real time transmissionNetwork ProtocolUDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPs, QoSInterface ProtocolONVIFStorageNetwork remote storage; micro SD card storageSmart Alarm
