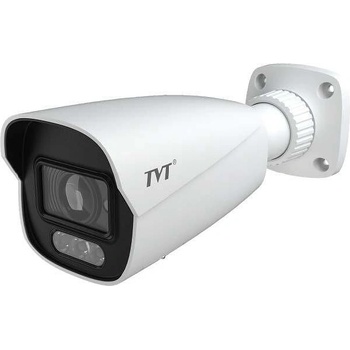

TVT TD-9442S4-C(D/AZ/PE/AW3)

Features

H. 265+ /H. 265 /H. 264+ /H. 264/MJPEG coding

Max. resolution: 4MP ( 2560 × 1440)

Motorized lens：2.8~12mm

Auto day/night switch

3D DNR, HWDR, HLC, BLC, etc.

ROI coding

Support smart supplement light

30~40m white light view distance; 30~50m IR view distance

DC12V/PoE power supply

IP 67 ingress protection

Support three streams

Support remote monitoring by smart phones& tablet PCs with iOS and Android OS

Support P2P function

Support SMD

Support line crossing detection, region intrusion detection, abandoned/missing object detection, video exception detection

Specification

Model TD-9442S4-C CameraImage Sensor1 / 3 "CMOSImage Size2560×1440Electronic Shutter1/1s ~ 1 / 100000sIris TypeFixed IrisMin. Illumination0.005 lux @F1.6, AGC ON; 0 lux with illumination on
0.004 lux @F1.4, AGC ON; 0 lux with illumination [email protected], H. FoV: 92 °~31 °;
V. FoV: 48 °~17.2°;D. FoV: 112 °~ 35.6 °FocusMotorizedLens MountM12Ø 14Day&NightICRWide Dynamic Range120dBBLCYesHLCYesDigital NRYesS/N Ratio≥50dBAngle AdjustmentPan: 0°~360°; Tilt:0°~80°;Rotation: 0°~360°ImageVideo CompressionMain stream: H. 265+ /  H. 265  /  H. 264+  /  H. 264
Sub stream: H. 265+ / H. 265 / H. 264+ / H. 264 / MJPEG
Third stream: H. 265+ / H. 265 / H. 264+ / H. 264/ MJPEGH. 265 Compression StandardMain [email protected] High TierResolution4MP (2560×1440 ), 3MP (2304×1296 ), 1080P ( 1920 × 1080 ),
720P ( 1280 × 720 ), D1, VGA (640 × 480), CIF, 480 × 240Main Stream60Hz: 4MP/3MP/1080P/720P(1~30fps); 50Hz: 4MP/3MP/1080P/720P(1~25fps)Sub Stream60Hz : 720P/D1/VGA/CIF(1~30fps); 50Hz: 720P/D1/VGA/CIF (1~25fps)Third Stream60Hz: D1/480× 240/CIF (1~30fps);50Hz: D1/480× 240/CIF(1~25fps)Bit Rate64 Kbps ~ 6 MbpsBit Rate TypeVBR / CBRImage SettingsROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc.
adjustable through client software or web browserAudio CompressionG711A/UROIEach ROI to be configured separatelyInterfacesNetworkRJ45Video OutputNoAudio1CH audio input; 1CH built-in MICStorageBuilt-in micro SD card slot, up to 256GBResetYesFunctionsRemote MonitoringWeb browser /TVT NVR/NVMS2. X/Mobile APPWeb BrowserIE (plug-in required)/Google Chrome/Edge/Firefox/SafariOnline ConnectionSupport simultaneous monitoring for up to 3 users; Support multi-stream real time transmissionNetwork ProtocolUDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, QoSInterface ProtocolONVIFStorageNetwork remote storage; micro SD card storageSmart Alarm
