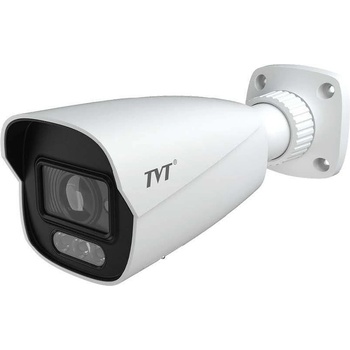

TVT TD-9442S4-PA(D/AZ/PE/AW3)

Features

H. 265+ /H. 265 /H. 264+ /H. 264/MJPEG coding

Max. resolution: 4MP (2560 × 1440)

Motorized lens: 2.8~12mm

Auto day/night switch

3D DNR, HWDR, HLC, BLC, etc.

ROI coding

Support smart supplement light

30~40m white light view distance; 30~40m IR view distance

DC12V/PoE power supply

IP 66 ingress protection

Support three streams

Support remote monitoring by smart phones& tablet PCs with iOS and Android OS

Support P2P function

Support SMD

Support line crossing detection, region intrusion detection, abandoned/missing object detection, video exception detection

Blue and red light warning (flashing alternately)

Support user-defined warning voice import

Specification

Model TD-9442S4-PA Camera Image Sensor1 / 3 "CMOSImage Size2560×1440Electronic Shutter1/1s ~ 1 / 100000sIris TypeFixed IrisMin. Illumination0.005 lux @F1.6, AGC ON; 0 lux with illumination on0.004 lux @F1.4, AGC ON; 0 lux with illumination onLens
[email protected], H. FoV: 92 °~31 °;V. FoV: 48 °~17.2°;
D. FoV: 112 °~ 35.6 °
Focus
MotorizedLens MountM12Ø 14Day/NightAuto, Day, Night, TimingWide Dynamic Range120dBBLCYesHLCYesDigital NRYesS/N Ratio≥50dBAngle AdjustmentPan: 0°~360°; Tilt:0°~90°;Rotation: 0°~360° Image Video CompressionMain stream: H. 265+ /  H. 265  /  H. 264+  /  H. 264
Sub stream: H. 265+ / H. 265 / H. 264+ / H. 264 / MJPEG
Third stream: H. 265+ / H. 265 / H. 264+ / H. 264/ MJPEGH. 265 Compression StandardMain [email protected] High TierResolution4MP (2560×1440 ), 3MP (2304×1296 ), 1080P ( 1920 × 1080 ),
720P ( 1280 × 720 ), D1, VGA (640 × 480), CIF, 480 × 240Main Stream60Hz: 4MP/3MP/1080P/720P(1~30fps); 50Hz: 4MP/3MP/1080P/720P(1~25fps)Sub Stream60Hz : 720P/D1/VGA/CIF(1~30fps); 50Hz: 720P/D1/VGA/CIF (1~25fps)Third Stream60Hz: D1/480× 240/CIF (1~30fps);50Hz: D1/480× 240/CIF(1~25fps)Bit Rate64 Kbps ~ 6 MbpsBit Rate TypeVBR / CBRImage SettingsROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc.
adjustable through client software or web browserAudio CompressionG711A/UROIEach ROI to be configured separately Interfaces NetworkRJ45Video OutputNoAudio1CH audio input; 1CH built-in MIC; 1CH audio output; 1CH built-in speakerStorageBuilt-in micro SD card slot, up to 256GBResetYes Functions Remote MonitoringWeb browser /TVT NVR/NVMS2. X/Mobile APPWeb BrowserIE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+Online ConnectionSupport simultaneous monitoring for up to 4 users; Support multi-stream real time transmissionNetwork ProtocolUDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, QoSInterface Protocol
