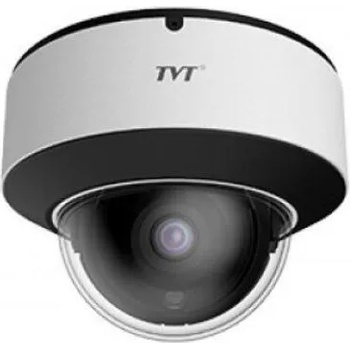

TVT TD-9521E3

Нов фърмуер

Софтуер за обновяване на фърмуера

TD-9521E3(D/PE/AR2) Fixed Lens 2.8mm, 3.6mm

Features

Starlight

2MP ( 1920 × 1080 ) @30fps

Support smart H. 265/H. 264 coding

ICR auto switch, true day / night

20 ~ 30m IR night view distance

3D DNR, true WDR, HLC, BLC, Defog, Smart IR and ROI coding

Support corridor mode

Support image distortion correction

1CH alarm input and 1CH alarm output

1CH audio input and 1CH built-in MIC

Built-in micro SD card slot, up to 128GB

DC12V/PoE power supply

IP67 & IK10

Support three streams

P2P function optional

Support mobile surveillance by smart phones & tablet PCs with iOS and Android OS

Intelligent analytics: Object abandoned/missing detection, region entrance/exiting/intrusion detection(human/vehicle classification), line crossing detection(human/vehicle classification), video tampering detection, scene change detection, face detection, face capture, crowd density detection, heat map, human/vehicle counting, human tracking

Dimension

ModelTD-952 1E3CameraImage Sensor1 / 2.8 "CMOSImage Size1920 × 1080Electronic Shutter1 / 25 s ~ 1 / 100000 sIris TypeFixed IrisMin. Illumination0.005 [email protected], AGC ON; 0 lux with IR
0.0028 [email protected], AGC ON; 0 lux with IRLens2.8 mm @F1.6, horizontal field of view: 108°
3.6 mm @F1.6, horizontal field of view: 89°Lens MountM12Wide Dynamic Range120dBBLCYesHLCYesDefoggingYesDigita l NR3D DNRAngle AdjustmentPan : 0°~355°, Tilt : 0°~67°, Rotation : 0°~355°ImageVideo CompressionSmart H. 265 / H. 265+ / H. 265 / Smart H. 264 / H. 264+ / H. 264 / MJPEGH. 264 Compression StandardBaseline Profile/Main Profile/High ProfileResolution1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240Main Stream60Hz : 1080P / 720P( 1 ~ 30fps ); 50Hz : 1080P / 720P( 1 ~ 25fps )Sub Stream60Hz : 720P/D1/CIF (1~30fps); 50HZ: 720P/D1/CIF (1~25fps)
