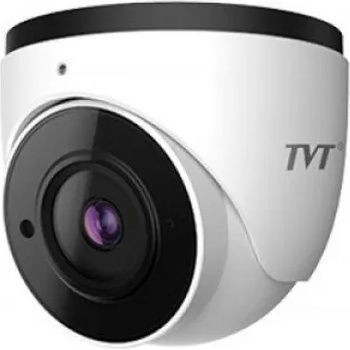

TVT TD-9524E3

Нов фърмуер

Софтуер за обновяване на фърмуера

TD-9524E3(D/PE/AR2) Fixed Lens 2.8mm, 3.6mm

Features

Starlight

2MP ( 1920 × 1080 ) H. 265 full real time coding

Max. resolution: 1920 × 1080

ICR auto switch, true day / night

20 ~ 30m IR night view distance

3D DNR, true WDR, HLC, BLC, Defog, Smart IR and ROI coding

Support corridor mode

Support image distortion correction

1CH audio input; 1CH built-in MIC

Hardware reset

Built-in micro SD card slot, up to 128GB

DC12V/PoE power supply

IP67 ingress protection

Support three streams

P2P function optional

Support remote monitoring by smart phones & tablet PCs with iOS and Android OS

Intelligent analytics: Object abandoned/missing detection, region entrance/exiting/intrusion detection(human/vehicle classification), line crossing detection(human/vehicle classification), video tampering detection, scene change detection, face detection, face capture, crowd density detection, heat map, human/vehicle counting, human tracking

Dimension

ModelTD-952 4E3CameraImage Sensor1 / 2.8 "CMOSImage Size1920 × 1080Electronic Shutter1 / 25 s ~ 1 / 100000 sIris TypeFixed IrisMin. Illumination0.005 [email protected], AGC ON; 0 lux with IR 0.0028 [email protected], AGC ON; 0 lux with IRLens2.8 mm @F1.6, horizontal field of view: 108°
3.6 mm @F1.6, horizontal field of view: 89°Lens MountM12Wide Dynamic Range120dBBLCYesHLCYesDefogYesDigital NR3D DNRAngle AdjustmentPan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360°ImageVideo CompressionSmart H. 265 / H. 265+ / H. 265 / Smart H. 264 / H. 264+ / H. 264 / MJPEGH. 264 Compression StandardBaseline Profile/Main Profile/High ProfileResolution1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240Main Stream60Hz : 1080P / 720P( 1 ~ 30fps ); 50Hz : 1080P/ 720P( 1 ~ 25fps )Sub Stream60Hz : 720P/D1/CIF (1~30fps); 50HZ: 720P/D1/CIF (1~25fps)
