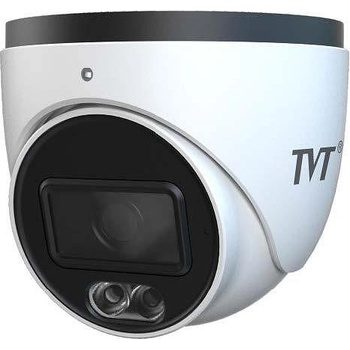

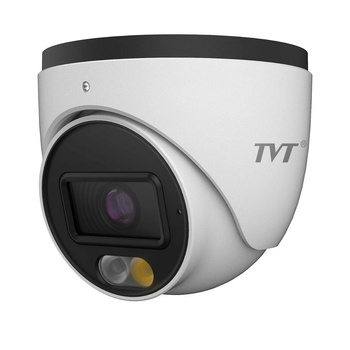

TVT TD-9524S4-C(D/PE/AW2)

Features

H. 265+ /H. 265 /H. 264+ /H. 264/MJPEG coding

Max. resolution:2MP (1920 × 1080)

Fixed Lens：3.6mm

Auto day/night switch

3D DNR, HWDR, HLC, BLC, etc.

ROI coding

Support smart supplement light

20~30m white light view distance; 20~30m IR view distance

DC12V/PoE power supply

IP 67 ingress protection

Support three streams

Support remote monitoring by smart phones& tablet PCs with iOS and Android OS

Support P2P function

Support SMD

Support line crossing detection, region intrusion detection, abandoned/missing object detection, video exception detection

Specification

Model TD-9524S4-C Camera Image Sensor1 / 2.8 "CMOSImage Size1920×1080Electronic Shutter1/3s ~ 1 / 100000sIris TypeFixed IrisMin. Illumination0.008 lux @F1.6, AGC ON; 0 lux with illumination [email protected], Horizontal FoV:89°; Vertical FoV:47.5°; Diagonal FoV:104°FocusFixedLens MountM12Wide Dynamic Range120dBBLCYesHLCYesDigital NRYesS/N Ratio≥50dBAngle AdjustmentPan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° Image Video CompressionMain stream: H. 265+ / H. 265 / H. 264+ / H. 264
 Sub stream: H. 265+ / H. 265 / H. 264+ / H. 264 / MJPEG
Third stream: H. 265+ / H. 265 / H. 264+ / H. 264/ MJPEGH. 265 Compression StandardMain [email protected] High TierResolution1080P (1920 × 1080), 720P (1280 × 720), D1, VGA (640× 480), 480× 240, CIMain Stream1080P/720P (60Hz: 1~30fps; 50Hz: 1~25fps)Sub StreamD1/VGA/CIF (60Hz: 1~30fps; 50Hz: 1~25fps)Third StreamD1/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps)Bit Rate64 Kbps ~ 6 MbpsBit Rate TypeVBR / CBRImage SettingsROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc.
adjustable through client software or web browserAudio CompressionG711A/UROIEach ROI to be configured separately Interfaces NetworkRJ45Video OutputNoAudio1CH audio input; 1CH built-in MICStorageBuilt-in micro-SD card slot, up to 256GBResetYes Functions Remote MonitoringWeb browser /TVT NVR/NVMS2. X/Mobile APPWeb BrowserIE (plug-in required)/Google Chrome/Edge/Firefox/SafariOnline ConnectionSupport simultaneous monitoring for up to 4 users; Support multi-stream real time transmissionNetwork ProtocolUDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoSInterface ProtocolONVIFStorageNetwork remote storage; micro-SD card storageSmart AlarmMotion detection, SMD, SD card full, SD card errorSmart EventVideo Exception (scene change, video blur and abnormal color detection), line crossing /region intrusion detection (human/motor vehicle/non-motor vehicle classification), abandoned/missing object detection
