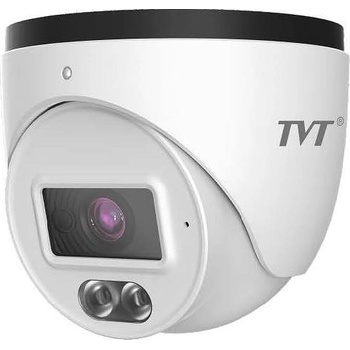

TVT TD-9544S4L-C(D/PE/AW1)

Features

H. 265+ /H. 265 /H. 264+ /H. 264/MJPEG coding

Max. resolution: 4MP ( 2560 × 1440)

Auto day/night switch

3D DNR, WDR, HLC, BLC, etc.

ROI coding

Support smart supplement light

10~20m white light view distance; 20~30m IR view distance

DC12V/PoE power supply

IP 67 ingress protection

Support dual streams

Support remote monitoring by smart phones& tablet PCs with iOS and Android OS

Support line crossing detection & region intrusion detection

Support SMD

Model TD-9544S4L-C Camera Image Sensor1 / 3 "CMOSImage Size2560×1440Electronic Shutter1 / 3s ~ 1 / 100000sIris TypeFixed IrisMin. Illumination0.09 lux @F2.2, AGC ON; 0 lux (Illuminator on)[email protected], Horizontal FoV: 96°;Vertical FoV:53.7°;Diagonal FoV:112°
[email protected], Horizontal FoV:74.5°;Vertical FoV:41.5°;Diagonal FoV:86.5°FocusFixedLens MountM12Day&NightICRWide Dynamic RangeDigital WDRBLCYesHLCYesDigital NRYesS/N Ratio≥50dBAngle AdjustmentPan: 0°~360°; Tilt:0°~75°;Rotation: 0°~360° DORI Distance LensDetectObserveRecognizeIdent ify2.8mm57m(187ft)23m(75ft)11m(36ft)6m(2 0ft)3.6mm76m(249ft)31m(102ft)15m(49ft)8m (26ft) Image Video CompressionMain stream: H. 265+ / H. 265  /  H. 264  +  /  H. 264
Sub stream: H. 265+ / H. 265 / H. 264 + / H. 264 / MJPEGH. 265 Compression StandardMain [email protected] High TierResolution4MP ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ),
720P ( 1280 × 720 ), D1, VGA (640× 480), 480× 240, CIFMain Stream4MP /  3MP / 1080P/720P (60Hz: 1~30fps; 50Hz: 1~25fps)Sub StreamD1/VGA/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps)Bit Rate64 Kbps ~ 3 MbpsBit Rate TypeVBR / CBRAudio CompressionG711A/UImage SettingsROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc.
adjustable through client software or web browserROIEach ROI to be configured separately Interfaces NetworkRJ45Video OutputNoAudio1CH built-in MICStorageNoResetNo Functions Remote MonitoringWeb browser /TVT NVR/NVMS2. X/Mobile APPWeb BrowserIE 11 (plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+Online ConnectionSupport simultaneous monitoring for up to 3 users; Support multi-stream real time transmissionNetwork ProtocolUDP, IPv4, IPv6, DHCP, NTP, RTSP, 802.1x, HTTPInterface ProtocolONVIFStorageNetwork remote storageMotion DetectionSupport smart motion detection; filtering motion alarm triggered by other target types except humans. Smart Event(Human) region intrusion detection, (human)line crossing detectionGeneral FunctionWatermark, video mask, heartbeatSecurityVideo encryption, firmware encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTPPoEYes, IEEE802.3afSupplement Light RangeIR range: 20 ~ 30 m; white light range:10 ~ 20 mIngress ProtectionIP67 Others Power SupplyDC12V/PoEPower Consumption< 5WOperating Environment- 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing)Storage Environment- 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing)Dimensions ( mm )Ø 94.6 × 82.8Weight ( net )Approx. 0.42KGInstallationCeiling mounting; Wall mountingCertificateCE, FCCEnvironmental ProtectionComplies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)
