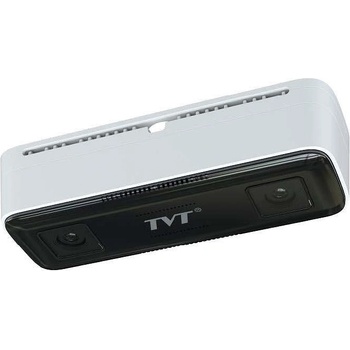

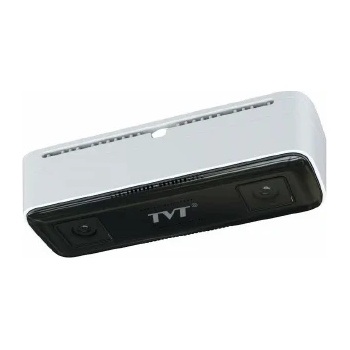

TVT TD-9742A3-PC

Features

High quality imaging with 4MP resolution

Fixed lens：2.1mm

H265+/H265/H264+/H264/MJPEG coding

3D DNR, WDR, HLC, BLC

Built-in micro-SD card slot, up to 256GB

People counting: counts people entering and exiting separately and outputs daily/monthly/annual report

Supports children counting

Supports target height filtering and human head detection algorithm

Supports three streams

IP66

Specification

Model TD-9742A3-PC Camera Image Sensor1/3" Progressive Scan CMOSMax. Resolution2560 × 1440Min. Illumination0.008 [email protected], AGC ON; 0 lux with IR ONShutter SpeedAutoWDR120dBS/N Ratio≥ 50dBBLCYesHLCYesDigital NR3D NR Lens Lens TypeFixed focal lens, 2.1mm ApertureF2.1FOVH. FoV: 103°; V. FoV:70°; D. FoV:110°Lens MountM12 DORI DORID: 37 m, O: 15m, R: 7 m, I: 4 m Illuminator　 Supplement Light TypeIR Light, 850nmSupplement Light RangeUp to 10 mOverexposure ControlYesVideo & Audio　Video CompressionMain stream: H. 265+ / H. 265/ H. 264+ / H. 264
Sub/Third stream: H. 265+ / H. 265/ H. 264+ / H. 264 MJPEGH. 264 Compression StandardBaseline Profile/Main Profile/High ProfileResolution4MP (2560×1440), 3MP (2304×1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 ×240Main Stream4MP/3MP/1080P/720P (60Hz: 1~30fps; 50Hz:1~25fps)Sub Stream720P/D1/CIF (60Hz: 1~30fps; 50Hz:1~25fps)Third StreamD1/480 ×240/CIF (60Hz: 1~30fps; 50Hz:1~25fps)Bit Rate64Kbps ~ 8MbpsBit Rate TypeVBR/CBRAudio CompressionG711A / UImage SettingsROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browserROIEach ROI to be configured separately Interfaces　 Network1 CH RJ45 10 M/100 M self-adaptive Ethernet portWi-FiSupport 2.4G, 5G, built-in antennaAudio2CH built-in MIC (supports audio noise reduction); 1 CH built-in Speaker; 1CH audio input; 1CH audio outputAlarm1CH alarm input; 1CH alarm outputRS-485Yes, half-duplexStorageBuilt-in micro-SD card slot, up to 256GBResetYes Functions Remote MonitoringWeb Browser/TVT NVMS2.0/NVR/mobile APPWeb BrowserIE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+Online ConnectionSupport simultaneous monitoring for up to 3 users;
Support multi-stream real time transmissionNetwork ProtocolUDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, SNMP, PPPoE, DDNS, 802.1x, SMTP, FTP, UPnP, HTTPS, HTTP, QoS, HTTP POSTInterface ProtocolONVIF, SDKPeople CountingCounts people entering and exiting separately and outputs daily/monthly/annual report
Supports children counting; supports target height filtering; supports human head detection algorithmSmart AlarmMotion detection, SD card error, SD card full, video exception detection (scene change, video blur and video cast
detection), network disconnection, reverse entering detection, abnormal number of people detectionLinkageUpload to memory card/FTP, notify surveillance center, audible warning, trigger recording, trigger capture, send emailGeneral functionWatermark, heartbeat SecurityVideo encryption, firmware encryption, HTTPs encryption, configuration encryption, illegal login lock, IP address
filtering, 802.1x authentication, basic and digest authentication for HTTP Others PowerDC12V/PoEPower Consumption< 9WWorking Environment-30℃ to 45 ℃ (-22 °F to 113 °F). Humidity 95% or less (non-condensing)Installation Height2m~6mWeight (net)Approx. 0.563kg Protection ProtectionIP66CertificateCE, FCCEnvironmental ProtectionRoHS2.0，REACH，WEEE，direc tive94/62/EC
