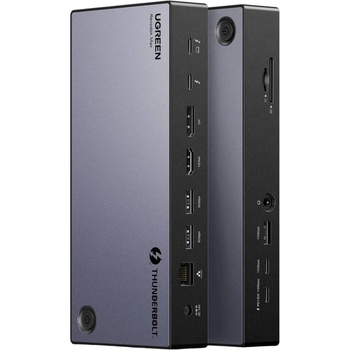

UGREEN 25085EU

Ugreen Revodok Max 313





13-in-1

40Gbps Transfer Speed



90W+20W Charging



Upgraded Cooling System



Dual 4K@60Hz for macOS



Dual 4K@60Hz for Windows



Single 8K for Windows





Features

• Highly Productive 13-in-1 Thunderbolt 4 Dock: The UGREEN Revodok Max 313 features Thunderbolt 4 (40 Gbps, 15 W), HDMI 2.1, DisplayPort 1.4, USB-C 3.2 (10 Gbps, 18 W), USB-A 3.2 (10 Gbps), 2*USB-A 3.0, microSD & SD 4.0 slots, Gigabit Ethernet, 3.5mm Aux, and a 140W power input.
• Future-Proof 40 Gbps Thunderbolt 4: The dock includes a Thunderbolt 4 downstream port for data, video, and audio transfer at ultra-high speeds up to 40 Gbps, maximizing peripheral usage.
• Triple 4K@60Hz Display: Expand up to triple displays through the Thunderbolt 4 downstream port and the dock's HDMI/DisplayPort, with resolutions up to a single 8K@30Hz or triple 4K@60Hz.
• 60W Charging: The Thunderbolt 4 upstream port provides up to 60W power delivery to the host, ensuring optimal performance across various application scenarios.
• MicroSD & SD 4.0: Both card slots offer UHS-II performance with a maximum transfer speed of up to 312 MB/s, three times faster than standard UHS-I cards.





Specifications

Ports 13Extended Monitor 3Data Ports 1 (TBT 4)
2 (USB-C 3.2)
2 (USB-A 3.2)
2 (USB-A 3.0)Transfer Speed TBT: 40 Gbps (Max)
USB-C 3.2: 10Gbps
USB-A 3.2: 10Gbps
USB-A 3.0: 5GbpsDisplay port 1 (HDMI 2.1)Display Resolution Max HDMI2.1: 8K@30Hz, 4K@120Hz, 2K@144Hz
TBT 4: 8K@30Hz, 4K@120Hz, 2K@144HzCharging Port 140W (Charger Included)Ethernet Port GigabitOther Port 1 SD/TF 4.0 Card Slot
1 3.5mm AudioProduct Dimensions L190xW85xH28.5(mm)
