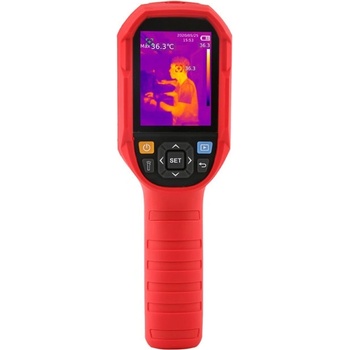

UNI-T Термовизионна камера UNI-T UTi260K, 2.8" (7.11 cm) TFT дисплей, индикаторна лампа, аларма при висока температура, между 30 и 45 градуса, червена (UT-UTi260K)

UTi260K

EST Thermal Camera

UTi260K EST thermal camera can quickly and effectively measure surface temperatures to identify elevated body temperature. It can aslo be mounted on a tripod and set in public locations, such as schools, shopping malls, airport and other high traffic areas. The thermal camera is with PC software (support data review, analysis and report sharing), it also supports real time projection to display the image and data on a large monitor and automaticlly tracking and alarm for high temperature.



Elevated Skin Temperature Thermal Cameras

UTi260K EST thermal camera can quickly and effectively measure surface temperatures to identify elevated body temperature. It can aslo be mounted on a tripod and set in public locations, such as schools, shopping malls, airport and other high traffic areas. The thermal camera is with PC software (support data review, analysis and report sharing), it also supports real time projection to display the image and data on a large monitor and automaticlly tracking and alarm for high temperature.

Features :

• Durable and user-friendly
• IR resolution: 256×192
• 2.8 TFT display screen (320×240 Pixels)
• Temperature measurement range: 30℃ to 45℃
• Auto alarm for high temperature
• Image modess: Thermal, Visual image, Fusion
• Color palattes: 7(Ironbow, Rainbow, White hot, Black hot, Red hot, Lava, Rainbow HC)
• PC software analysis
• Real-time image projection
• RIO
• LED flashlight
• Rechargeable Li-ion battery
• 1/4 tripod mounting hole



Technical DataIR resolution (Pixels) 256×192Display 2.8TFT LCD (320×240)Field of view(FOV) 56°×42°Thermal sensitivity(NETD) ≤60mkSpatial resolution(IFOV) 3.8mradFrame rate ≤25HzSpectral range 8~14mFocus Focus FreeTemperature measurement range 30℃~45℃ (86℉-113℉)Accuracy ±0.5° (@25˚C ambient temperature)Emissivity 0.01~1.00 adjustable (0.95 default)FunctionsColor palettes 7
(Ironbow, Rainbow, White hot, Black hot, Red hot, Lava, Rainbow HC)Image modes Thermal, Visual Image, Fusion, PIPOn screen analyzer 3 PointsDigital camera resolution 640×480Hi/Lo temperature alarm Icon, LED flashlightSoftware analysis PCGeneral CharacteristicsBattery Fixed Li-ion battery (3.6V 5000mAh)Battery operating Time  ≥ 6 hoursUSB Type-CStorage 32G Micro SD cardImage/Video storage format BMPCertificates CE, FCC, RoHSProduct net weight 910gProduct size 236mm×75.5mm×86mmPacking DetailsStandard accessories Type-C USB cable, Micro SD card, English manualStandard individual packing Gift boxStandard Qty per carton 10pcsStandard carton size 500mm×315mm×295mmStandard carton G. W. 2.2kg
