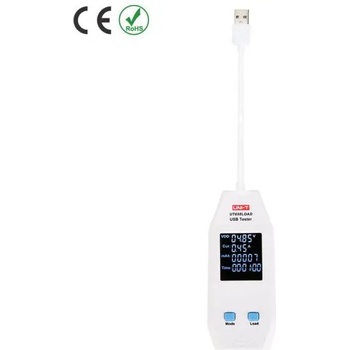

UNI-T USB тестер Uni-T UT658LOAD

The second generation UT658 series USB testers can inspect USBchargers, portable power sources, USB type A and C cables andother electronic charging devices. UT658 measures output voltage, current, energy, capacity, circuit equivalent resistance, D+ andD- voltages of USB data cables. This series is designed to beprecise, reliable, stable, and portable. They are great tools forapplications such as manufacturing verification, engineeringtesting, and DIYers.
Description UT658LOAD
Input & Output ports (Type A)√
Data/charging protocol2.0/3.0
Voltage range 4~24VDC, resolution: 0.01V √
Current range (Type-A) 0.05~3ADC, resolution: 0.01A √
Capacity 0~99999mAh, resolution: 1mAh √
Energy 0~1000Wh √
Circuit equivalent resistance measurement 1~480 √
USB data cable voltage (D+, D-) 0~3.3V √
Data storage 10 sets √
Electrical load (UT658LOAD only) 0.5A, 1A, 2A, 3A (Max power: 60W) √
Maximum recording time 99h, 59min, 59sec; resolution: 1s √
Fast charge protocol (Type-A) QC 3.0 fast charge protocol √
General Characterisitics
Product color White
Product net weight 114.4g
Product size 122mm x 53mm x 27mm
