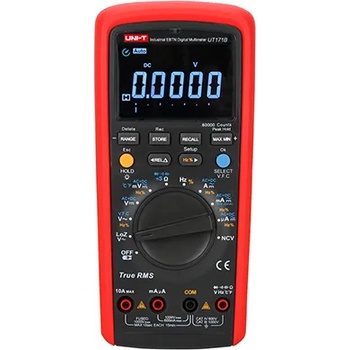

UNI-T UT171B True RMS индустриален мултиметър
Функции: 1. AC+DC measurement 2. Peak hold 3. Rechargeable battery 4. VFC low-pass filtering 5. USB/Bluetooth communication Спецификации: Specifications Range UT171B...
247,98 €|485,00 лв.*
Информация в магазина
Вид:
Най-евтини оферти (1)
UNI-T UT171B True RMS индустриален мултиметър
UT171B True RMS индустриален мултиметър
Описание на продукта
Функции: 1. AC+DC measurement 2. Peak hold 3. Rechargeable battery 4. VFC low-pass filtering 5. USB/Bluetooth communication Спецификации: Specifications Range UT171B...
Параметри на продукта
Производител
UNI-T
Етикет
UNI-T
Параметри на продукта
Производител
UNI-T
Етикет
UNI-T
Описание на продукта
Функции:
1. AC+DC measurement
2. Peak hold
3. Rechargeable battery
4. VFC low-pass filtering
5. USB/Bluetooth communication
Спецификации:
Specifications Range UT171B
DC voltage (V) 1000V ±(0.025%+5)
AC voltage (V) 1000V ±(0.4%+40)
DC current (A) 10A ±(0.15%＋2)
AC current (A) 10A ±(0.75%＋5)
Resistance () 60M ±(0.05%＋2)
Admittance (nS) 60nS ±(1%＋10)
Capacitance (F) 60mF ±(2.5%+40)
Frequency (Hz) 10Hz~10MHz ±(0.01%+5)
Temperature (°C)-40°C~1000°C ±(1%+30)
Temperature (°F)-40°F~1832°F ±(1.5%+50)
Features
Display count60000
Auto/Manual range√
True RMS√
Bandwidth (Hz) 100kHz √
4~20mA loop 0~100% √
LoZ (ACV) Around 3k √
Diode Around 3V √
Continuity buzzer√
Duty cycle 0.1%~99.9% √
NCV/Data hold/MAX/MIN√
Relative mode√
Data storage9999
Display typeEBTN
Analog bar graph31
LCD backlight√
Mis-plug alarm√
Low battery indication√
Auto power off√
Input protection√
Input impedance for DCV√
Input impedance for DCV Around 1G √
General Characteristics
Power 7.4V 2000mAh Li-ion battery
Display 70.6mm x 35.3mm
Product color Red and grey
Product net weight 384g
Product size 206mm x 95mm x 55mm
Standard accessories Batteries, test leads, point contact temperature probe, USB interface cable, power adaptor, PC software CD
Standard individual packing Gift box, carrying bag, English manual
