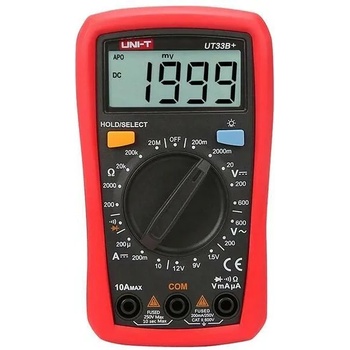

UNI-T UT33B+ (MIE0326)

The new generation UT33+ series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 600V environment. Special features are, 2mF capacitance test (UT33A+); battery test (UT33B+); temperature measurement function (UT33C+); non-contact voltage (NCV) test (UT33D+).

Свойства

1. Clear LCD display
2. Comfortable protective cover, with test lead hanging groove
3. 2 meters drop test, precision protection
4. Loud buzzer sound; Ergonomic design
5. Unique battery test feature: Displays‘good’, ‘low’, and‘bad’ statuses when testing 1.5V/9V/12V batteries
Specifications Range UT33B+
DC voltage (V) 200mV/2V/20V/200V/600V ±(0.5%＋2)
AC voltage (V) 200V/600V ±(1.2%+3)
DC current (A) 200μA/200mA/10A ±(1%+2)
Resistance () 200/2k/20k
/200k/20M ±(0.8%+2)
Features
Display count2000
Auto power off/Auto backlight off√
Diode test/Continuity buzzer√
2m drop test/ Test probe holder√
Range selectionManual
Battery test1.5V/9V/12V
General Characteristics
Power 1.5V battery (R03) x 2
Display 66mm x 51mm
Product net weight Red and grey
Product color 206g (batteries included)
Product size 134mm x 77mm x 47mm
Standard accessories Batteries, test leads
Standard individual packing Gift box, English manual
