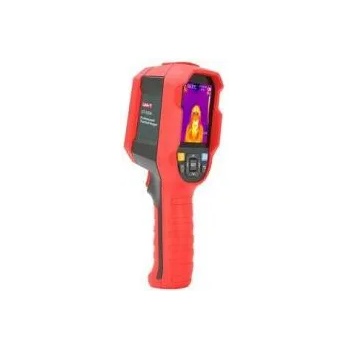

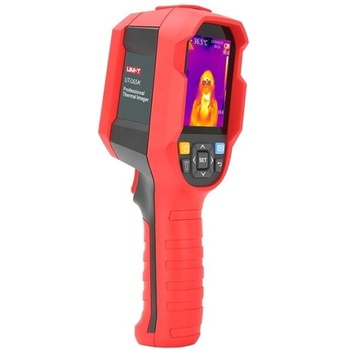

UNI-T UTi165K

Персонализираната граница на висока температура може да бъде настроена на 37,3'C. За температура >=37,3'C, индикаторната лампа и екранът ще показват аларма за висока температура, която може ефективно и бързо да регистрира хората с температура над нормата



Specifications

Model
UTi165K

Sensor
Uncooled focal plane

Temperature range
30˚C~45˚C

Resolution
0.1˚C

Accuracy
±0.5˚C @1m

Minimum measuring distance
15cm

Temperature measurement response time
≤500ms (95% of reading)

Pixel of thermal imagery
19200 (160×120)

Pixel dimemsions
12μm

Palettes
Iron red, rainbow, white, black, red, lava, high-contrast rainbow

Bandwidth of infraed spectroscopy
8~14μm

Field of view (FOV)
56°(H) × 42°(V)

Instantaneous field of view (IFOV)
6mrad

Thermal imaging sensitivity
＜50mk

Frame rate
＜9Hz

Temperature display
Center temperature measurement and high temperature tracking (default)

Image format
BMP

Buttons
10 buttons: POWER button, Camera button, Return button, Navigation buttons, SET button, SET button, Browsing button, LED lighting button

Image modes
Thermal imagery, digital camera (visible light), fushion

Temperature measuring point
Besides central point, 3 temperature measuring points can be added

Visible light
√

Resolution of visible light
640×480

Display resolution
320×240

Mixed setting
0% (total visible light), 25%, 50%, 75%, 100% (total thermal imagery)

PC analysis software (PC)
√

Real-time image transmission
√ (PC software image projection)

Data communication
Type-C USB

Auto power off
Selectable (5min, 10min, 30min), 30min auto power off (default)

Service time
≧6 hours

Charging time
≦5 hours

Charging voltage/current
5V/2A

Image storage
Micro SD card

General Characteristics

Power
A single Li-ion 3.7V/5000mAh 26650 battery

Display
2.8" TFT LCD

Product color
Red & grey

Product size
236mm x 75.5mm x 86mm

Standard accessories
Manual, Type-C USB cable, 16GB TF card

Standard carton gross weight
2.2kg
