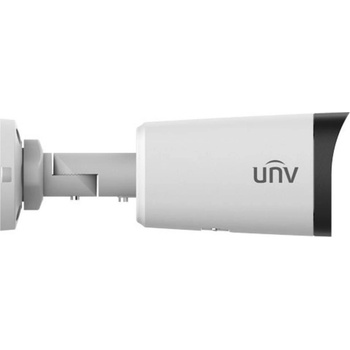

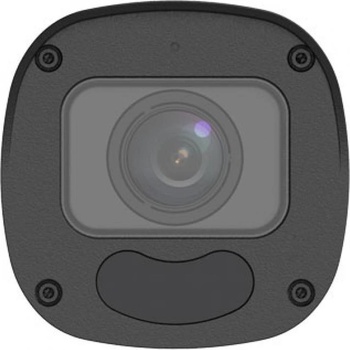

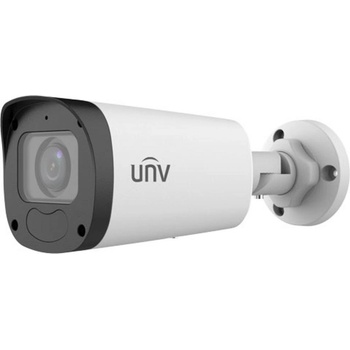

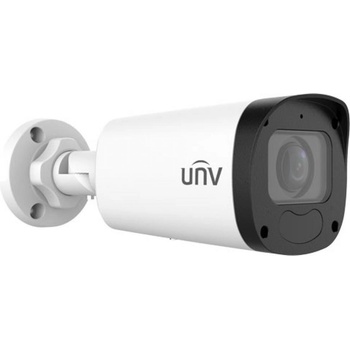

Uniview IPC2324LB-ADZK-G

UNV IPC2324LB-ADZK-G

High quality image with 4MP, 1/3"CMOS sensor
4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296)@ 30/25fps;2MP (1920*1080)@30/25fps
Ultra 265, H. 265, H. 264, MJPEG
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 50m (164ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
3-Axis

Camera
Sensor 1/3", 4.0 megapixel, progressive scan, CMOS
Minimum Illumination: Colour: 0.003Lux (F1.6, AGC ON)
0Lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment angle:Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
S/N: >56dB
WDR: 120dB

Lens
Lens Type: 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
Lens Mount: Φ14
Angle of View (H): 102.79°~ 30.86°
Angle of View (V): 54.50°~ 17.49°
Angle of View (O): 106.94°~35.49°

Illuminator
IR Range: Up to 50m (164ft) IR range
Wavelength: 850nm
IR On/Off Control: Auto/Manual

Video
Video Compression: Ultra 265, H. 265, H. 264, MJPEG
H. 264 code profile: Baseline profile, Main profile, High profile
Frame Rate: Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Supported
9:16 Corridor Mode: Supported
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Motion Detection: Up to 4 areas

White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital noise reduction: 2D/3D DNR
Smart IR: Supported
Flip: Normal/Vertical/Horizontal/180°/90°Clo ckwise/90°Anti-clockwise
Dewarping: N/A
HLC: Supported
BLC: Supported
Defog: Digital Defog

Audio
Audio Compression: G. 711
Suppression: Supported
Sampling Rate: 8KHZ

Storage
Edge Storage: Micro SD, up to 256GB
Network Storage: ANR, NAS(NFS)

Network
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, 802.1x, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API , SDK
User/Host: Up to 32 users. 2 user levels: administrator and common user
Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client
EZStation
EZView
EZLive

Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface
Network: 1 * RJ45 10M/100M Base-TX Ethernet
Built-in Mic: Supported

Certification
EMC: FCC: FCC Part 15
Safety CE: EN 60950-1
UL: UL60950-1
IEC 60950-1

General
Power: DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8.5W
Power Interface: Ø 5.5mm coaxial power plug
Dimensions (L × W × H) 206 × 74 × 74mm (8.1 × 2.9 × 2.9)
Weight 0.55kg (1.2lb)
Material: metal
Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection: 6KV
Reset Button: Supported
Ingress Protection: Ingression protection: IP67
