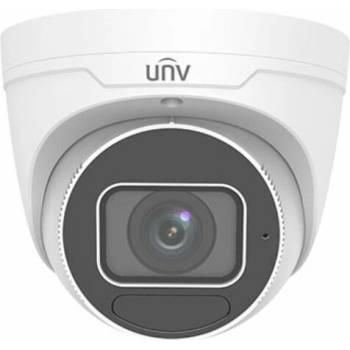

Uniview IPC3634LB-ADZK-H

IP camera with efficient Ultra 265 image compression algorithm for clear and smooth video streaming at maximal resolution of 4 Mpx.



PoE powering possibility, compatible with the 802.3af standard makes the device more universal and easier to install. The range of IR illumination according to the manufacturer data, depends on outer conditions (visibility - air transparency, environment, wall colors ie. scene reflectance).



The Uniview series product has been designed to minimize costs while maintaining high quality and ease of use.

SPECIFICATION: Standard: TCP/IPSensor: 1/3 " Progressive Scan CMOSMatrix size: 4 MpxResolution: 2688 x 1520  - 4 Mpx ,
2560 x 1440  - 3.7 Mpx ,
2304 x 1296  - 3 Mpx ,
1920 x 1080  - 1080p ,
1280 x 720  - 720pLens: 2.8  ... 12 mm - Motozoom, AutoFocusView angle: 86 ° ... 35 °Range of IR illumination: 40 mRS-485 interface: NoMemory card slot: Micro SD memory cards up to 256GB support (possible local recording)Image compression method: Ultra 265 / H. 265 / H. 264 / MJPEGAlarm inputs / outputs: NoAudio:

• Microphone built-in
• Audio transmission via network
• Audio detection

Main stream frame rate: 25 fps @ 4 MpxNetwork interface: 10/100 Base-TX (RJ-45)WEB Server: Built-inMax. number of on-line users: 32 ONVIF: YesMobile phones support:

Access by a cloud (P2P)

• Android: Free application
• iOS (iPhone): Free application

Default IP address: DHCP or 192.168. 1.13 Default admin user / password: admin / 123456Web browser access ports: 80, 554 PC client access ports: Port no. : 80 or access by a cloud (P2P) - PC: Free application Mobile client access ports: 80 Port ONVIF: 80 RTSP URL: rtsp://192.168. 1.13:554/unicast/c1/s0/live - Main stream
rtsp://192.168. 1.13:554/unicast/c1/s1/live - Sub streamMain features:

• WDR - 120 dB - Wide Dynamic Range
• 2D-DNR, 3D-DNR - Digital Noise Reduction
• F-DNR (Defog) - Reduction of image noise caused by precipitation
• ROI - improve the quality of selected parts of image
• ANR - Automatic Network Replenishment allows to save image to the card when the network connection with DVR is break (network failure) and next synchronize its
• NAS - Network Attached Storage support
• Corridor mode - useful for monitoring corridors, entrance gates and narrow rooms
• BLC/HLC - Back Light / High Light Compensation
• ICR - Movable InfraRed filter
• Day/night mode
• Possibility to change the resolution, quality and bit rate
• Motion detection with human/vehicle silhouette recognition
• Privacy zones - max. 4
• Tamper signaling
• Intelligent image analysis : intrusion, crossing the line (tripwire) (human silhouette)

Power supply:

• PoE (802.3af),
• 12 V DC / 630 mA

Power consumption: ≤ 7.5 WHousing: Dome - MetalColor: White"Index of Protection": IP67Operation temp: -30 °C ... 60 °CWeight: 0.66 kgDimensions: Ø 129  x 110 mm
