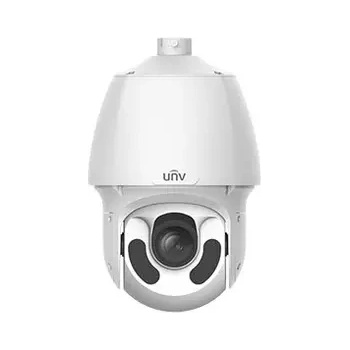

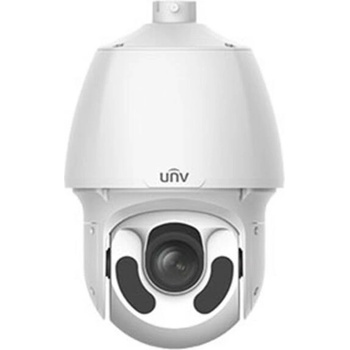

Uniview IPC6222ER-X20-B

UniVIEW IPC6222ER-X20-B

2MP 20x IR Network PTZ Dome Camera

• 1/2.8" progressive scan CMOS
  Up to 1920×1080 resolution, 60fps
  20x optical zoom (5.2~104mm)
  Ultra 265, H. 265, ONVIF
  Smart IR, up to 150m IR distance
  All-weather design
  Audio in/out, Alarm in/out
  AC24V±25%, DC24V±25%, Max 44W
  IP66, -40°C ~ +65°C
  (-P)PoE



Optics

* Accurate and fast focusing

* The third-generation infrared technology

* Smart IR, up to 150m (492ft) IR distance

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

* 120dB true WDR

Compression

* Ultra 265, H. 265, H. 264, MJPEG

* Triple streams

* Customized OSD

Network

* ONVIF Conformance

* Support P2P (ezcloud）

Structure

* Special structure and window design to battle bad weather (especially in dusty weather)

* Innovative snow-removing functionality

* More effective heat dissipation system

* Intelligent temperature control technology

* 6KV surge protection designed for network interface




CameraSensor 1/2.8", 2.0 megapixel, progressive scan, CMOSLens 5.2 ~ 104mm, AF automatic focusing and motorized zoom lensDigital Zoom 16Optical Zoom 20DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)5.2 80.7 32.3 16.1 8.1104 1613.8 645.5 322.8 161.4Angle of View (H) 55.93° ~ 3.52°Angle of View (V) 33.25° ~ 1.98°Angle of View (O) 68.79° ~ 4.15°Shutter Auto/Manual; shutter time: 1 ~ 1/100000sMinimum Illumination Colour: 0.001Lux (F1.5, AGC ON)
0Lux with IRIris Auto; F1.5 ~ F3.0Day/Night IR-cut filter with auto switch (ICR)Digital noise reduction 2D/3D DNRS/N >52dBIR Range UP to 150m (492ft)Defog Digital DefogWDR 120dBVideoVideo Compression Ultra 265, H. 265, H. 264, MJPEGH. 264 code profile Baseline profile, Main Profile, High ProfileFrame Rate Main Stream: 2MP (1920*1080), Max 60fps;
Sub Stream: 2MP (1920*1080), Max 60fps;
Third Stream: D1 (720*576), Max 60fpsHLC SupportedBLC SupportedEIS SupportedOSD Up to 8 OSDsPrivacy Mask Up to 24 areasROI Up to 8 areasMotion Detection Up to 4 areasSmartBehavior Detection Line crossing detection, Intrusion detection, Auto tracking, Master-slave LinkageException Detection And Statistics Object Moving, Object LeftRecognition Face detection, Audio detection, Motion detectionStatistical Analysis People countingGeneral Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User AuthenticationImageWhite Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2AudioAudio Compression G. 711Two-way audio SupportedSuppression SupportedSampling Rate 8KHZStorageEdge Storage Micro SD, up to 256GBNetwork Storage ANRNetworkProtocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, TLS, SSL, QoS, RTMPCompatible Integration ONVIF (Profile S, Profile G, Profile T), APIPan & TiltPan Range 360° (endless)Pan Speed 0.1°/s ~ 240°/sPreset speed: 300°/sTilt Range –15° ~ 90° (auto reverse)Tilt Speed 0.1° ~ 160°/sPreset speed: 240°/sNumber of Presets 1024Patrol Up to 16 patrols, up to 32 presets per patrolHome Position SupportedInterfaceAudio I/O Audio cableInput: impedance 35k; amplitude 2V [p-p]Output: impedance 600; amplitude 2V [p-p]Alarm I/O 1/1Network 1 RJ45 10M/100M Base-TX EthernetGeneralPower Power consumption: Max 44WDimensions (Ø x H) Ø227 x 359.4mm (Ø8.9 x 14.2)Weight 5.28kg (11.6lb)Working Environment -40°C ~ 65°C (-40°F ~ 149°F), Humidity: ≤95% RH (non-condensing)Ingress Protection IP66
