ViewSonic TD2223

ViewSonic TD2223

The ViewSonic® TD2223 is a 22 IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.



Anti-scratch Touchscreen

With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

7H Hardness Screen

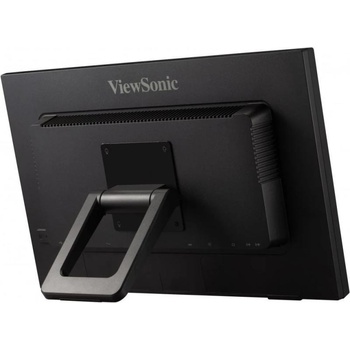

Adjustable Tilt

This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.





Clear Images

This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.

Full HD 1080p Resolution



Dual Integrated Speakers

With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.

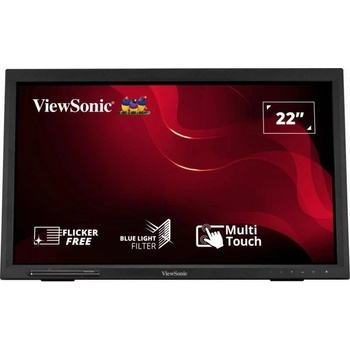

Enhanced Viewing Comfort

This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.

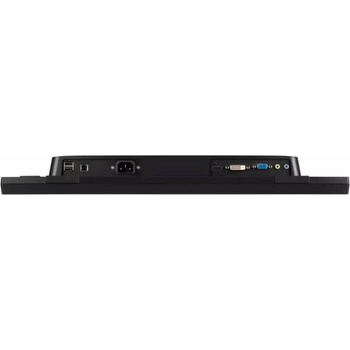

Dimension & I/O Ports



1. Menu Control Panel


2. USB Down Stream x 2


3. USB UP Stream


4. AC In


5. HDMI

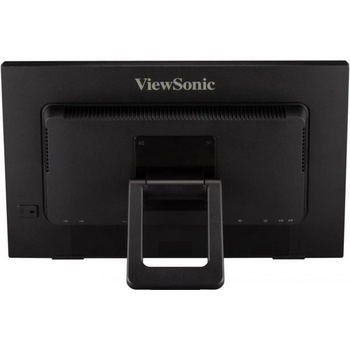

6. VESA Compatible

   (Wall Mount 100 x 100mm)


7. Earphone Out


8. Audio In


9. VGA


10. DVI





SPECIFICATIONS

• Display
  Display Size (in. ): 22

  Viewable Area (in. ): 21.5

  Panel Type: TN Technology

  Resolution: 1920 x 1080

  Resolution Type: FHD

  Static Contrast Ratio: 1,000:1 (typ)

  Dynamic Contrast Ratio: 20M:1

  Light Source: LED

  Brightness: 250 cd/m2 (typ)

  Colors: 16.7M

  Color Space Support: 8 bit (6 bit + Hi-FRC)

  Aspect Ratio: 16:9

  Response Time (Typical GTG): 5ms

  Response Time (GTG w/OD): 5ms

  Response Time (Typical Tr+Tf): 5ms

  Viewing Angles: 170º horizontal, 160º vertical

  Backlight Life (Hours): 30000 Hrs (Min)

  Curvature: Flat

  Refresh Rate (Hz): 75

  Blue Light Filter: Yes

  Flicker-Free: Yes

  Color Gamut: NTSC: 72% size (Typ), sRGB: 103% size (Typ)

  Pixel Size: 0.248 mm (H) x 0.248 mm (V)

  Touch Screen: IR, 10-point multi-touch

  Surface Treatment: Glossy, Hard Coating (7H)

  Cover Glass Thickness: 2mm



• Compatibility
  PC Resolution (max): 1920x1080

  Mac® Resolution (max): 1920x1080

  PC Operating System: Windows 10 certified; macOS tested

  Mac® Resolution (min): 1920x1080



• Connector
  VGA: 1

  USB 2.0 Type A: 2

  USB 2.0 Type B: 1

  3.5mm Audio In: 1

  3.5mm Audio Out: 1

  HDMI 1.4: 1

  DVI-D: 1

  Power in: 3-pin Socket (IEC C14 / CEE22)
