VIEWSONIC TD2423 Touch Monitor 23.6inch 1920x1080 SuperClear VA Ten points IR touch with 5ms 250nits touch module VGA DVI HDMI
id="p4087732"> VIEWSONIC TD2423 Touch Monitor 23.6inch 1920x1080 SuperClear VA Ten points IR touch with 5ms 250nits touch module VGA DVI HDMIManufacturer VIEWSONICManufacturer Part No TD2423Marketing DescriptionThe ViewSonic TD2423 is a 24" IR touch display designed for intuitive multi-touch use. The infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with TD2423 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with a scratch-resistant 7H hardness screen to surface damage. To support your work, TD2423 is equipped with VGA, HDMI, DVI and USB connectivity. Product Features

• Intuitive multi-touch experience
  An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, TD2423 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.
• Anti-scratch touchscreen
  With a built-in 7H hardness screen, it's resistant to surface damage caused by sharp objects.
• Adjustable tilt

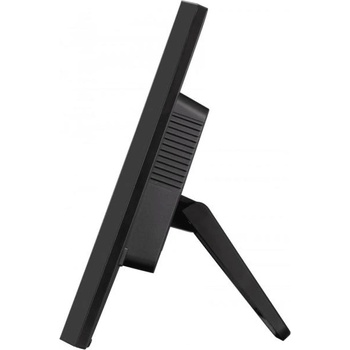

  This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40 degrees, making it a good fit for anyone.
• Clear images
  This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.
• Dual integrated speakers
  With built-in 2W speakers, this monitor provides you a better audiovisual experience.
• Enhanced viewing comfort
  This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.

GeneralDisplay TypeLED-backlit LCD monitor / TFT active matrixEnergy ClassClass DDiagonal Size24"Viewable Size23.6"Built-in DevicesUSB 2.0 hubPanel TypeVAAspect Ratio16:9Native ResolutionFull HD (1080p) 1920 x 1080 at 75 HzPixel Pitch0.272 mmBrightness250 cd/m?Contrast Ratio3000:1 / 20000000:1 (dynamic)Colour Support16.7 million colours (8-bit)Colour Gamut104% sRGB, 72% NTSCResponse Time7 ms (grey-to-grey with overdrive)Vertical Refresh Rate50 - 75 HzHorizontal Refresh Rate24 - 82 kHzHorizontal Viewing Angle178Vertical Viewing Angle178Screen Coating7H Hard CoatingBacklight TechnologyLED backlightFeaturesGlossy, scratch-resistant, Flicker Free technology, glove touch mode, Blue Light Filter technology, Eye-Care Technology, 8-bit(6-bit + Hi-FRC) Colour Depth, 72% NTSC colour gamutDimensions (WxDxH)57.1 cm x 10.1 cm x 34.8 cm - with standWeight5.2 kgAudioTypeSpeakers - stereoOutput Power / Channel2 WattInputTypeTouch-screen - touchscreenMovement Detection TechnologyInfraredConnectivityInterfaces VGA
DVI-D
HDMI
2 x USB 2.0 downstream (Type A)
USB 2.0 upstream (Type B)
Audio line-in (mini-jack)
Audio line-out (mini-jack)MechanicalDisplay Position AdjustmentsTiltTilt Angle-22/+38VESA Mounting Interface100 x 100 mmMiscellaneousFeaturesSecurity lock slot (cable lock sold separately), VESA interface supportCables Included1 x HDMI cable
1 x USB type A to USB type B cable
1 x audio cable - 1.5 mBacklight Life40,000 hoursCompliant StandardsFCC Class B certified, BSMI, ICES-003, CB, CCC, RoHS, WEEE, PSE Mark, cTUVus, REACH, CEC, UkrSEPRO, ERP, CECP, EAC, China Energy Label, China RoHS, RCM, GEMS, CE/EMC, Mexico Energy label, Mexico CoCSecurity Slot TypeKensington security slotPowerInput VoltageAC 120/230 V (50/60 Hz)Power Consumption SDR (On mode)14 kWh/1000hPower Consumption (Typical)15.5 WattPower Consumption Stand by0.5 WattSoftware / System RequirementsOS RequiredApple MacOS, Linux, Android, Google Chrome OS, Microsoft Windows 7 / 8.1 / 10Dimensions & WeightDimensions & Weight DetailsWithout stand - width: 57.1 cm - depth: 6.1 cm - height: 34.8 cm - weight: 4.7 kg
With stand - width: 57.1 cm - depth: 10.1 cm - height: 34.8 cm - weight: 5.2 kgDimensions & Weight (Shipping)Shipping Width64.5 cmShipping Depth16.6 cmShipping Height42.2 cmShipping Weight7 kgSustainability InformationEPEAT CompliantEPEAT SilverENERGY STAR CertifiedYesENERGY STAR Version8.0Environmental ParametersMin Operating Temperature0 °CMax Operating Temperature40 °CHumidity Range Operating20 - 90% (non-condensing) Technical data provided by third party. We assume no liability for errors within these data.
