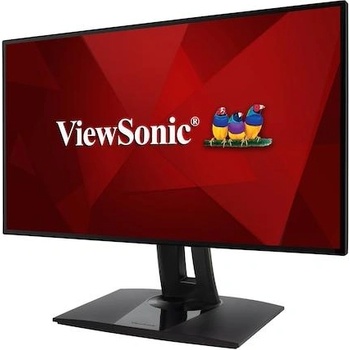

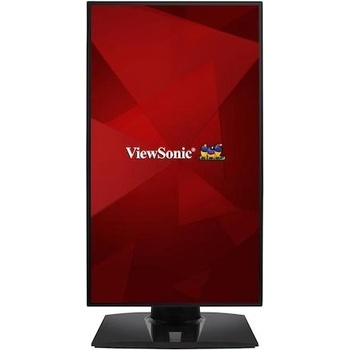

ViewSonic VP2458

Display
Display Size (in. )

24
Viewable Area (in. )

23.8
Panel Type

IPS
Resolution

1920 x 1080
Resolution Type

HD (1920x1080)
Static Contrast Ratio

1,000:1
Dynamic Contrast Ratio

20,000, 000:1
Light Source

WLED
Brightness

250 cd/m2
Colors

16.7M
Color Space Support

6 bits
Aspect Ratio

16:9
Response Time (Typical GTG)

14ms
Response Time (GTG w/OD)

7ms
Viewing Angles

178º horizontal, 178º vertical
Backlight Life (Hours)

30,000
Panel Surface

Anti-glare, Hard coating 3H
Compatibility
PC Resolution (max)

1920 x 1080
Mac® Resolution (max)

1920 x 1080
Connector
USB 3.1 Type A

2
USB 3.1 Type B

1
VGA

1
HDMI 1.4

1
Display Port

1
Power
Eco Mode (Conserve)

11.5
Eco Mode (optimized)

14.0
Consumption (typical)

17.5
Consumption (max)

19.5
Voltage

AC 100-240V (universal), 50-60Hz
Stand-by

0.5W
Power Supply

Internal
Additional Hardware
Kensington Lock Slot

1
Controls
Physical Controls

1,2, 3,4, 5,6 (Power)
On Screen Display

Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)
Operating Conditions
Temperature

32-104º F (0 - 40º C)
Humidity (non-condensing)

20-90%
Mount
VESA Compatible

100 x 100 mm
Video Signal
Frequency Horizontal

55 ~ 90 KHz
Frequency Vertical

48 ~ 75 Hz
Video Input
Digital Sync

TMDS for HDMI (v1.4), PCI-E for DisplayPort (v1.2)
Ergonomics
Height Adjust (mm)

130
Swivel

120º
Pivot (Right/Left)

90º / 90º
Tilt (Forward/Back)

21º/ 5º
Weight (imperial)
Net (lbs)

12.1
Net Without Stand (lbs)

6.9
Gross (lbs)

19.0
Weight (metric)
Net (kg)

5.5
Net Without Stand (kg)

3.1
Gross (kg)

8.6
Dimensions (imperial) (wxhxd)
Packaging (in. )

27.2 x 8.1 x 15.0
Physical (in. )

21.2 x 16.7 x 8.5
Physical Without Stand (in. )

21.2 x 12.2 x 1.9
Dimensions (metric) (wxhxd)
Packaging (mm)

690.0 x 205.0 x 380.0
Physical (mm)

539.0 x 423.7 x 215.0
Physical Without Stand (mm)

539.0 x 311.0 x 48.0
General
Regulations

cTUVus, FCC-B, ICES003, Energy Star, EPEAT, MX-CoC, Mexico Energy
PACKAGE CONTENTS

VP2458, Power Cable, DP to DP Cable, USB3.1 Upstream Cable, Quick Start Guide
Recycle/Disposal

Please dispose of in accordance with local, state or federal laws.
