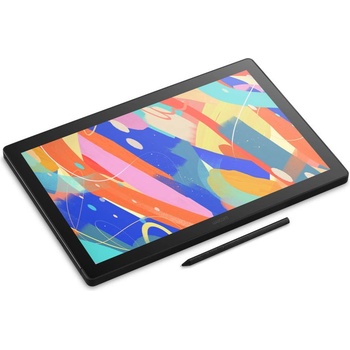

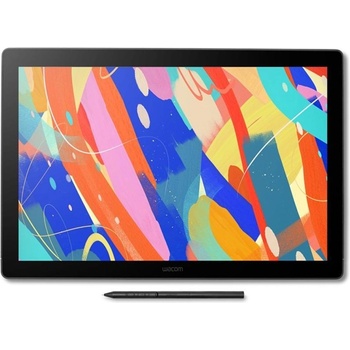

Wacom DTK168K0B

Wacom Cintiq 16

Built-In Comfort, Designed for You

Built-in foldable feet provide a steady 20° working angle right out of the box. For added ergonomic flexibility, the optional Wacom Adjustable Stand lets you fine-tune the angle silently and smoothly—so you can work in comfort, your way.

Designed to Fit, Built to Impress

The Wacom Cintiq 16 packs a high-resolution 2.5K display—1.8x sharper than Full HD—into a slim, space-saving form. Perfect for smaller desks or mobile setups without compromising visual quality.

Wacom Cintiq 16

Perfect for illustrators, students, and serious hobbyists ready to upgrade - ideal for design and pre-production on smaller workspaces.

Why Choose the New Wacom Cintiq?

• Trusted by creatives worldwide for reliable pen display performance
• Sharp 2.5K resolution, anti-glare glass, and rich color accuracy
• Sleek, space-saving design with built-in 20° foldable  feet
• Compatible with VESA mounts and optional stand
• Wacom Pro Pen 3: our latest pen technology
• Clean cable management with USB-C Power Delivery
• Fanless, quiet, and cool for long creative sessions

Specifications

Display Information

Screen size (approx. )

16"

Screen Resolution

WQXGA

Color Depth

16.7 million (8 bit)

Screen size

16.0 inch (40.6 cm)

Display resolution

2560 x 1600 pixels

Technology

IPS

Glass / surface

AG glass

Active area (mm)

345 x 215 mm

Active area (inch)

13.6 x 8.5 in

Aspect ratio

16:10

Supported resolution

640 x 480 @60Hz 720 x 480 @60Hz 720 x 576 @50Hz 800 x 600 @60Hz 1024 x 768 @60Hz 1280 x 720 @50/60Hz 1280 x 1024 @60Hz 1440 x 900 @60Hz 1600 x 1200 @60Hz 1680 x 1050 @60Hz 1920 x 1080 @50/60Hz 1920 x 1200 @60Hz 2560 x 1600 @60Hz

Pixel pitch

0.1346 (H) x 0.1346 (V) mm

Viewing angle

178 deg. (89/89) H/178 deg. (89/89) V (typ)

Color depth

8bit x RGB = 24bit

Color gamut coverage ratio

DCI P3 99% (CIE1931) (typ) sRGB 100% (CIE1931) (typ)

Contrast ratio

1400:1 (typ)

Brightness

290cd/m2 (typ)

Response time (G2G)

12ms (typ)

Pen Specification

Pen name

Wacom Pro Pen 3

Pen pressure levels

8192 levels

Pen type

Pressure-sensitive, cordless, battery-free, selective grips/ balance/ side switch

Number of switches

3 side switches

Pen tilt supported

60 degrees

Pen resolution

5080 lpi

Pen technology

Electromagnetic resonance technology

Reading height

10 mm

Maximum report rate

240 report/second

Pen dimensions

160 x 8.4 mm (6.3 x 0.3 in)

Pen weight

9.1 g (0.3 oz)

Touch Specification

Multi-Touch

No

Connect ivity

I/O Ports

1x HDMI Type-C (mini HDMI) 1x USB Type-C

Dimension And Weight

Product dimensions (L x W x H) (mm)

259 x 384 x 15 mm

Product dimensions (L x W x H) (inch)

10.2 x 15.1 x 0.6 in

Product weight (kg)

2.0 kg

Requirements

System requirements

Windows 10 or later (latest service pack/build) macOS 13 or later Android 8.0 and above

Hardware requirements

USB-C port with DisplayPort Alt Mode*, or HDMI port and USB port, internet access to download driver. To achieve the maximum resolution and refresh rate on Wacom Cintiq 16, the host PC ports need to support 2560 x 1600 @60Hz. *Thunderbolt 3 or later is also supported.
