Wacom DTK246K0B

Wacom Cintiq 24

Built-In Comfort, Designed for You

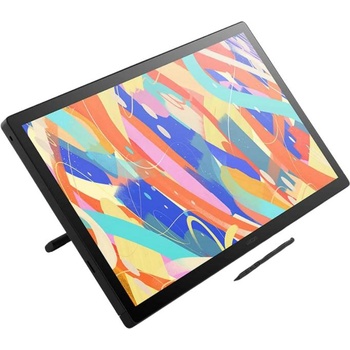

Included with the 24" models, the Wacom Adjustable Stand offers smooth, silent angle control to support your ideal posture. Whether sitting or standing, you can quickly reposition the screen to match your workflow and line of sight.

Designed to Fit, Built to Impress

A refined edge-to-edge design houses a 2.5K display—nearly twice the resolution of Full HD. With the generous 24" screen, you'll enjoy a clear, comfortable workspace built to elevate your craft.

Wacom Cintiq 24

Designed for 2D workflows like concept art, storyboarding, and illustration in studio environments that demand a spacious, high-resolution canvas.

Why Choose the New Wacom Cintiq?

• Trusted by creatives worldwide for reliable pen display performance
• Spacious 23.8" 2.5K display with color-accurate visuals
• Includes adjustable stand (16°–69°) for ergonomic comfort
• VESA-compatible for flexible studio setups
• Wacom Pro Pen 3: our latest pen technology
• Clean workspace with smart cable routing
• Cool, fanless design for uninterrupted creativity

Specifications

Display Information

Screen size (approx. )

24"

Screen Resolution

WQHD

Color Depth

16.7 million (8 bit)

Screen size

23.8 inch (60.4 cm)

Display resolution

2560 x 1440 pixels

Technology

IPS

Glass / surface

AG glass

Active area (mm)

527 x 296 mm

Active area (inch)

20.7 x 11.7 in

Aspect ratio

16:9

Supported resolution

640 x 480 @60Hz 720 x 480 @60Hz 720 x 576 @50Hz 800 x 600 @60Hz 1024 x 768 @60Hz 1280 x 720 @50/60Hz 1280 x 1024 @60Hz 1600 x 1200 @60Hz 1920 x 1080 @50/60Hz 2560 x 1440 @60Hz

Pixel pitch

0.2058 (H) x 0.2058 (V) mm

Viewing angle

178 deg. (89/89) H/178 deg. (89/89) V (typ)

Color depth

8bit x RGB = 24bit

Color gamut coverage ratio

sRGB 100% (CIE1931) (typ)

Contrast ratio

1000:1 (typ)

Brightness

350cd/m2 (typ)

Response time (G2G)

12ms (typ)

Pen Specification

Pen name

Wacom Pro Pen 3

Pen pressure levels

8192 levels

Pen type

Pressure-sensitive, cordless, battery-free, selective grips/ balance/ side switch

Number of switches

3 side switches

Pen tilt supported

60 degrees

Pen resolution

5080 lpi

Pen technology

Electromagnetic resonance technology

Reading height

10 mm

Maximum report rate

240 report/second

Pen dimensions

160 x 8.4 mm (6.3 x 0.3 in)

Pen weight

9.1 g (0.3 oz)

Touch Specification

Multi-Touch

No

Connect ivity

I/O Ports

1x HDMI Type-C (mini HDMI) 1x USB Type-C

Dimension And Weight

Product dimensions (L x W x H) (mm)

340 x 568 x 21 mm

Product dimensions (L x W x H) (inch)

13.4 x 22.4 x 0.8 in

Product weight (kg)

4.8 kg without stand; 5.7 kg with stand

Product weight (lbs)

11 lb without stand; 13 lb with stand

Requirement s

System requirements

Windows 10 or later (latest service pack/build) macOS 13 or later Android 8.0 and above

Hardware requirements

USB-C port with DisplayPort Alt Mode*, or HDMI port and USB port, internet access to download driver. To achieve the maximum resolution and refresh rate on Wacom Cintiq 24, the host PC ports need to support 2560 x 1440 @60Hz. *Thunderbolt 3 or later is also supported.
