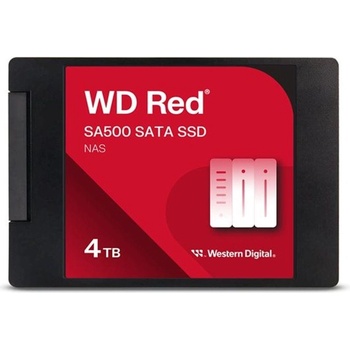

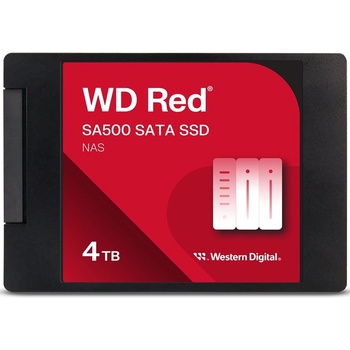

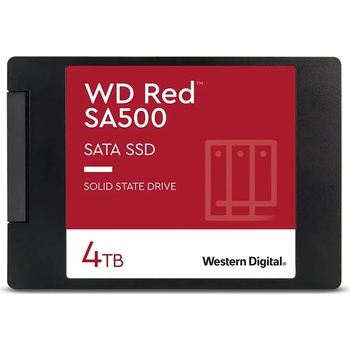

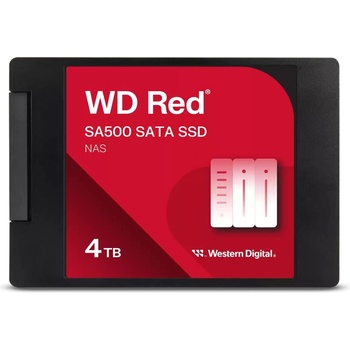

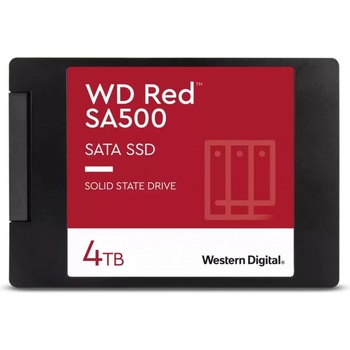

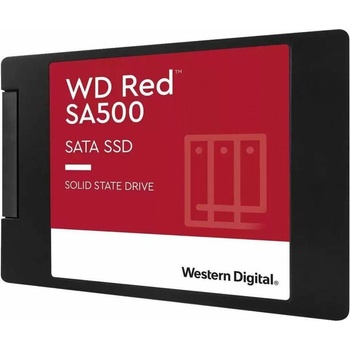

Western Digital WD Red SA500 2.5 4TB (WDS400T2R0A-68CKB0)

WD Red SSD SA500 NAS 4TB 2.5inch SATA




Manufacturer
WESTERN DIGITAL

Manufacturer Part No
WDS400T2R0A



Marketing Description
Boost your SSD NAS system's performance and responsiveness with the WD Red SA500 NAS SATA SSD. Your NAS system is always on, making a reliable drive essential. Unlike standard NAS SSDs, WD Red NAS SATA SSDs are specifically designed and tested for 24/7 usage.

Product Features

Supercharge your NASDurability together with efficient caching of big files make the WD Red SA500 NAS SATA SSD ideal for OLTP databases, multi-user environments, photo rendering, 4K and 8K video editing and other demanding applications. Access big files fastWD Red SA500 SSD 2.5-inch SSD storage is optimized for caching in NAS systems to rapidly access your most frequently used content. Give it your tough workloadsWD Red SSD's superior endurance can handle the heavy read and write loads demanded by NAS, giving you the reliability you need in a 24/7 environment. Work more efficientlyPurpose-built for NAS with proven Western Digital 3D NAND, the WD Red NAS Solid State Drive delivers maximum SATA performance to boost your productivity and effectiveness at home or in the office. Use it for your demanding applicationsThe drive reduces latency and improves responsiveness for OLTP databases, multi-user environments, photo rendering, 4K and 8K video editing, and more.

General

Device Type

Solid state drive - internal

Capacity

4 TB

Form Factor

2.5"

Interface

SATA 6Gb/s

Features

24x7 continuous operation, 3D NAND Technology

Width

69.85 mm

Depth

100.2 mm

Height

7 mm

Weight

34.6 g

Performance

SSD Endurance

2500 TB

Drive Transfer Rate

600 MBps (external)

Internal Data Rate

560 MBps (read) / 520 MBps (write)

4KB Random Read

87000 IOPS

4KB Random Write

83000 IOPS

Reliability

MTBF

2,000, 000 hours

24x7 Operation

Yes

Seek Errors

1 per 10^17

Expansion & Connectivity

Interfaces

1 x SATA 6 Gb/s

Compatible Bay

2.5"

Power

Power Consumption

100 mW (active)

3000 mW (read)

3000 Watt (write)

70 mW (sleep)

7 mW (DevSleep)

Miscellaneous

Compliant Standards

UL, TUV, VCCI, BSMI, FCC, KC, RCM, Morocco, UKCA, CB Scheme

Manufacturer Warranty

Service & Support

Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

70 °C

Min Storage Temperature

-55 °C

Max Storage Temperature

85 °C

Shock Tolerance (non-operating)

1500 g @ 0.5 ms half-sine

Vibration Tolerance (operating)

5 g @ 10-2000 Hz

Vibration Tolerance (non-operating)

4.9 g @ 7-800 Hz

Technical data provided by third party. We assume no liability for errors within these data.
