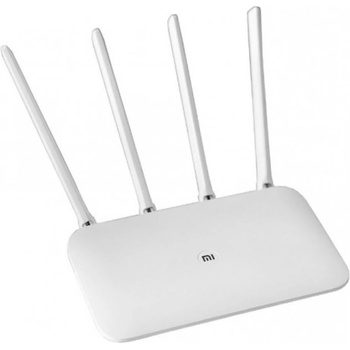

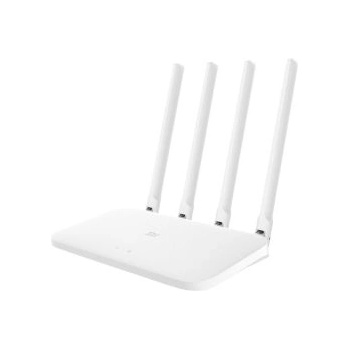

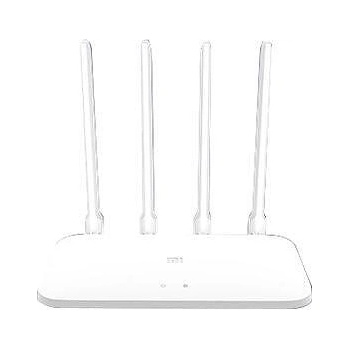

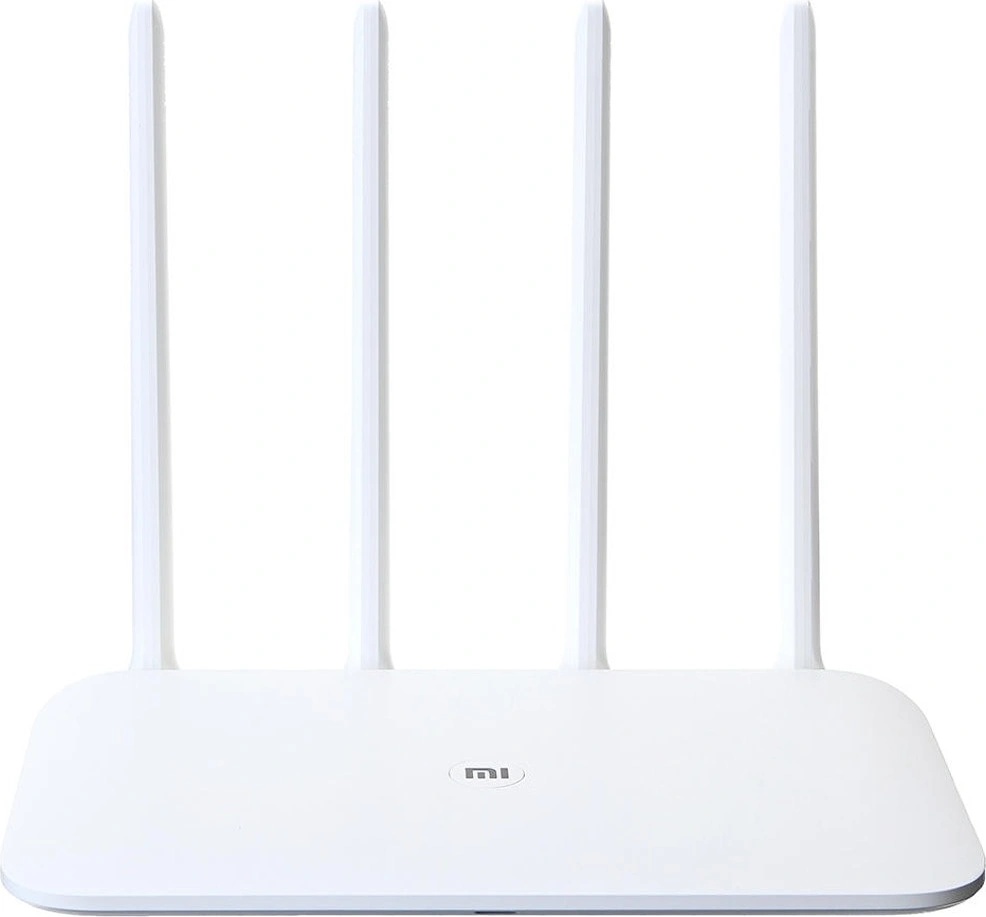

Xiaomi Mi DVB4230GL

Mi Router 4A

High-Speed Dual Band AC1200 Router

4 external antennas

64 MB memory for stable operation

Control remotely via app

Unauthorized access prevention

Parental Control

Enjoy a wireless dual band speed of 1167Mbps for a faster and smoother online experience

With 300Mbps over the 2.4GHz band and 867Mbps over the the crystal clear 5GHz band, the max wireless speed is up to 1167Mbps. The 2.4GHz band offers transmission over greater distances, with better coverage and better penetration through walls; The 5GHz band adopts 802.11ac technology Less interference and higher speeds for a smoother experience watching HD videos and playing multiplayer online games.

Specifications

Dimensions:  188 mm x 100.5 mm x 175 mm

Product color:  White

Processor:  MT7628DA

Internal memory:  64MB

2.4G Wi-Fi:  2x2 (supports the IEEE 802.11n protocol, maximum possible speed of 300Mbp

5G Wi-Fi:  2x2 (supports the IEEE 802.11ac protocol, maximum possible speed of 867Mbps)

Product antennas:  4 external omnidirectional antennas (two 2.4GHz antennas with maximum gain of 5dBi; two 5GHz antennas with maximum gain of 6dBi)

Product heat dissipation:  Natural heat dissipation

Total interfaces:

• Two 10/100M self-adaptive LAN ports (Auto MDI/MDIX)


• One 10/100M self-adaptive WAN port (Auto MDI/MDIX)

LED indicator lights:  2

System reset buttons:  1

Power input interface:  1

Protocol standards:  IEEE 802.11a/b/g/n/ac, IEEE 802.3/3u

Certification standards:  GB9254-2008, YD/T993-1998, GB4943.1-2011

Wireless specifications

Dual band2.4GHz and 5GHz

Modulation11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)

11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps),

64QAM (48/54Mbps)

11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS15

11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM. Rate set:

MCS0 to MCS9 (supports 2 streams)

Software specifications

Operating system:  Mi Wi-Fi ROM intelligent router operating system based on a highly customized version of OpenWRT

Wireless security:  WPA-PSK/WPA-PSK2 encryption, wireless access control (blacklist and whitelist), SSID hiding, smart unauthorized access prevention

Management application:  Supports web, iOS, and Android

Operating environment

Operating temperature:  0–40°C

Operating humidity:  10%–90% RH (no condensation)

Storage temperature:  -40–70°C

Storage humidity:  5%–90% RH (no condensation)
