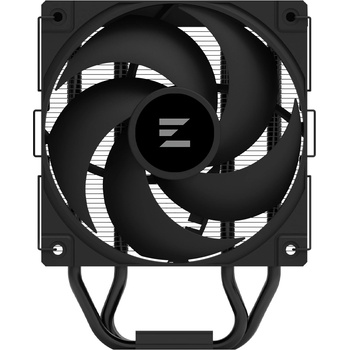

Zalman CNPS9X ECO DS

Zalman CNPS9X ECO DS



Display Top Cover

1. CPU Usage

2. Real-time CPU Temperature

3. CPU Power Consumption

Powerful airflow with PWM Black fan

The CNPS9X ECO DS fan cooler delivers 571 CFM ±10% airflow It provides 241 mmH₂O ±10% static pressure and operates quietly at 314 dB(A) ±10% PWM automatic fan control ensures optimal cooling performance

DTH(Direct Touch Heatpipe)

Zalman’s DTH technology is applied to minimize thermal resistance and maximize cooling performance

CNPS9X ECO DS effectively dissipates CPU heat with four high quality heatpipes and optimally designed heat sink (Supports up to 190W TDP)

Anti-vibration Rubber Damper

Rubber dampers absorb vibration noise during operation

Black Coated Copper Heatpipes

Black coating adds aesthetic to CNPS9X ECO DS and improves the thermal conductivity and rust resistance

PWM Control for Automatic Speed Control

CNPS9X ECO DS fan features automatic fan speed control to achieve the optimal balance between cooling performance and noise



Specifications



Dimensions 120 x 71 x 155(H)mmMaterials Pure Aluminum, Pure CopperWeight 498gHeat Dissipation Area 5,084㎠Heat Pipe 4Q’Max 190WFan Dimensions 120 x 120 x 25(H)mmFan Bearing Type Hydraulic bearingFan Speed 600~2,100RPM±10%Max. Fan Noise Level 31.4dB(A)±10%Max. Fan Air Flow 57.1CFM±10%Max. Fan Air Pressure 2.41mmH2O±10%Fan Life Span 40,000hoursFan Connector Type 4-PinFan Control Method PWM ControlRated Voltage 12V DCRated Current 0.13APower Consumption 1.56WSocket Compatibility Intel : LGA1851 / 1700
AMD : AM5 / AM4
