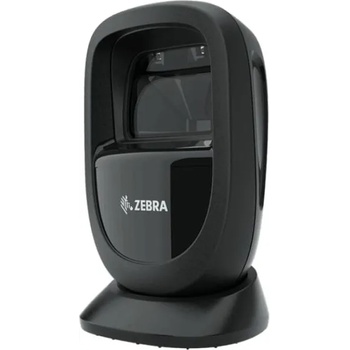

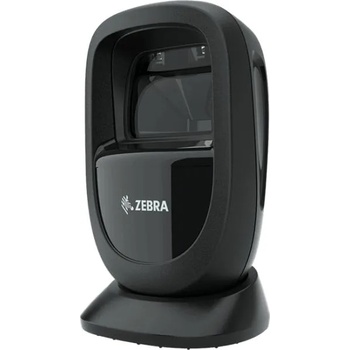

Zebra DS9308 DS9308-SR4U2100AZE

Zebra DS9308-SR4U2100AZE



Offers a Fit-Anywhere Form Factor Coupled With Stylish Aesthetics

From convenience and drug stores to quick-serve restaurants and other retail environments — counterspace is limited, bumps and spills may be an everyday occurrence, and the need for high customer satisfaction is always critical. Introducing the DS9300 Series, the presentation scanner that fits anywhere, scans everything and is built for all-day reliability.



Scan It All

The DS9300 Series instantly captures barcodes in virtually any condition, on any media. And with industry-leading swipe speeds and the widest field of view in its class, the DS9300 Series can capture barcodes as fast as they are presented.





Innovat ion-Driven Design

With a near-zero footprint, there’s always room for the DS9300 Series, no matter how space-constrained your counters may be. Recessed LEDs automatically dim when not in use — reducing eye annoyance. And the scanner’s ratcheting base offers four positions for convenient scanning.





Maximum Durability and Reliability

The DS9300 is built to handle the knocks and bumps that can happen in the real-world. Spills and dust won't slow it down thanks to an IP52 sealing, even the base is spill proof.





Category SpecificationPhysical Characteristics  Dimensions 5.7 in. H × 3.4 in. W × 3.3 in. D (14.5 cm H × 8.6 cm W × 8.3 cm D)Weight 11.2 oz / 318 gInput Voltage Range 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supplyOperating Current (5.0V) Presentation mode: 335 mATrigger mode: 350 mAStandby Current (5.0V) Presentation mode: 135 mATrigger mode: 75 mAColor Options Alpine White, Midnight BlackSupported Host Interfaces USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485Keyboard Support Supports over 90 international keyboardsTAA Compliance Trade Agreement Act Compliant (optional on select configurations)Electronic Article Surveillance Compatible with Checkpoint EAS deactivation systemUser Indicators Good decode LEDs, rear view LEDs, beeper (adjustable tone and volume)Performance Characteristics  Swipe Speed (Presentation) Up to 120 in. /305 cm per second for 13 mil UPC in optimized modeLight Source Aiming pattern: circular 617 nm amber LEDIllumination 660 nm Hyper Red LEDImager Field of View 52° H × 33° V nominalImage Sensor 1280 × 800 pixelsMinimum Print Contrast 15%Skew Tolerance ±60°Pitch Tolerance ±60°Roll Tolerance 360°Imaging Characteristics  Graphics Format Support Bitmap, JPEG, TIFFImage Quality 109 PPI on a 4.1 in. × 5.8 in. (A6) documentUser Environment  Operating Temperature 32 °F to 122 °F (0 °C to 50 °C)Storage Temperature -40 °F to 158 °F (-40 °C to 70 °C)Humidity 5% to 95% RH, non-condensingDrop Specification Withstands multiple drops at 5.0 ft / 1.5 m to concreteTumble Specification Withstands 1,000 tumbles in 1.5 ft / 0.5 m tumblerEnvironmental Sealing IP52Electrostatic Discharge (ESD) EN61000-4-2: ±15 KV Air, ±8 KV IndirectAmbient Light Immunity 0 to 10,000 foot-candles (0 to 107,700 Lux)Regulatory  Environmental EN 50581:2012; RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000; REACH 1907/2006Electrical Safety IEC 62368-1 2nd ed. ; EN 62368-1:2014/AC:2015; UL/IEC 60950-1 2nd ed. ; CAN/CSA C22.2 No. 60950-1 2nd ed. LED Safety IEC 62471:2006 (Ed. 1.0); EN 62471:2008 (LED)EMI/RFI FCC 47 CFR Part 15B; ICES-003; EN55032; EN55024; EN55035; VCCI; SABS
