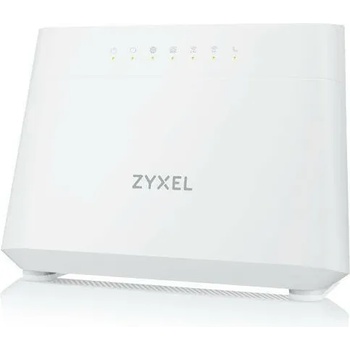

Zyxel EX3301 AX1800 (EX3301-T0-EU01V1F)

ZyXEL WiFi 6 AX1800
EX3301-T0-EU01V1F

Wireless Standard
802.11 b/g/n/ax 2.4 GHz, data rate
600 Mbps
802.11 a/n/ac/ax 5 GHz, data rate
1200 Mbps

Router/Bridge Features
IEEE 802.1D transparent bridge &
basic spanning tree
PPPoE (RFC 2516)
PPPoA (RFC 2364)
MAC encapsulation routing/IPoE
Network Address Translation (NAT)
NAT virtual server (port forwarding)
DHCP client/server/relay with DHCP
option 43/60/61/125
DNS proxy/dynamic DNS
Static/Policy route
IGMP v1, v2, v3
IPv4/IPv6

Wireless
Wireless Protected Setup (WPS)
WMM
WPA2/WPA2-PSK with TKIP & AES
Security type
Multi SSID: up to 4
MU-MIMO support

VLAN/QoS
802.1Q VLAN tagging/un-tagging
Support flexible traffic classification

Firewall & Security
Generic packet filter
DoS attack prevention
Parental control

USB
File sharing
3G back up with external 3G USB
dongle

Management
Web/HTTP: 3 level log-in via SSH or
Telnet
Firmware upgrade via web/TFTP/
FTP/TR-069 RPC method
Text based configuration
Configuration backup/update/
restore default via Web
Configurable access control for
remote management (interface and/
port number)
DSL forum TR-069, TR-098***
TR-111 and TR-181 i2
SNMP v1, v2
Rom-D support
UPnP port forwarding rules on page

VoIP (DX3301-T0/EX3301-T0)
Section Initiating Protocol (SIP), RFC
3261
Codec: G. 711 a/μ (64K), G. 726 (24/32K),
G. 722
G. 168 echo cancellation
Fax/modem detection and passthrough
Voice Active Detector (VAD)
Comfort Noise Generator (CNG)
Dynamic jitter buffer
DTMF detection and generation
DTMF relay by in-band and out-ofband (RFC 2833, SIP Info)
SIP account (URL type included)
On hook, off hook and flash
detection
Caller ID
Call forwarding (No condition, busy,
no answer)
Call transferring
Call hold/Call retrieve
Three way conference
Call waiting
DNS SRV

VDSL (DX3301-T0/DX3300-T0)
G. 993.1 VDSL
G. 993.2 VDSL2, Band 997, 998, Over
POTS
Support VDSL profiles: 8a/b/c/d,
12a/b, 17a, and 35b
G. vector

ADSL (DX3301-T0/DX3300-T0)
G. 992.1 (G. dmt)
G. 992.2 (G. lite)
ANSI T1.413 compliant
G. 992.3 (ADSL2)
G. 992.5 (ADSL2+)
G. INP support

Hardware Specifications
WAN: one 10/100/1000 Mbps
Ethernet port RJ-45
Wireless:
- Two internal antennas
(2.4 GHz)
- Two internal antennas
(5 GHz)

Interface Description
Ethernet: four 10/100/1000 Mbps
Ethernet ports RJ-45 (8P8C)
USB: one USB 2.0 host
FXS: two RJ-11 (DX3301-T0/EX3301-T0)
DSL: one RJ-11 (DX3301-T0/DX3300-T0)

Physical Specifications
Item dimensions :
220 x 153 x 35 mm
(8.66 x 6.02 x 1.38)
Item weight : 325 g (0.67 lb. )
