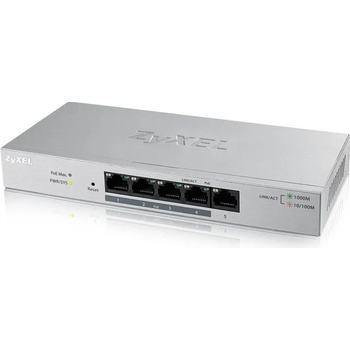

Zyxel GS1200-5HP

Models
GS1200-5HP

5-port GbE Web Managed PoE Switch

Chipset
Main chip
GS1200-5HP : Broadcom BCM53125
CPU

IC Plus IP210W

Port Density
Total port count
GS1200-5HP : 5
1000BASE-T
GS1200-5HP : 1
1000BASE-T PoE

4

Performance
Switching capacity
GS1200-5HP : 10 Gbps
Packet buffer
GS1200-5HP : 128 KB
MAC address

4K

Jumbo frame

9 KB

LED
Power

Yes

Per port

Yes

PoE power status

Yes (Max)

Power
Input voltage

55 V/1.3 A

Power supply

External

Maximum power consumption (watt)

72

PoE power budget (watt)

60

Physical Specifications
Dimensions (WxDxH) (mm)
GS1200-5HP : 193 x 84 x 26
Weight (kg)
GS1200-5HP : 0.4

Environmental Specifications
Operating temperature

0°C to 40°C/32°F to 104°F

Operating humidity

10% to 90% (non-condensing)

Storage temperature

-40°C to 70°C/-40°F to 158°F

Storage temperature

10% to 90% (non-condensing)

Standard Compliance
IEEE 802.3u 100BASE-TX Ethernet

Yes

IEEE 802.3ab 1000BASE-T Ethernet

Yes

IEEE 802.3az EEE support

Yes

IEEE 802.3x flow control

Yes

IEEE 802.3z 1000BASE-X

Yes

IEEE 802.1p CoS

Yes

IEEE 802.3af PoE

Yes

IEEE 802.3at PoE Plus

Yes (30W per port)

Auto MDI/MDI-X

Yes

IEEE802.1Q VLAN tagging

Yes

Features
Web-based management

Yes

System password

Yes

Port-based VLAN

Yes

VLAN (# Supported)
GS1200-5HP : 5
Port-based QoS

Yes

802.1p CoS

Yes

Broadcast storm control

Yes

Loop detection
GS1200-5HP : -
Weighted Round Robin (WRR) priority QoS

Yes

IGMP snooping v1/v2/and v3 compatible

Yes

Supported multicast groups

20

Firmware update

Yes

Certification
EMC

CE, FCC, C-Tick, Class A : Yes

Safety

LVD EN60950-1 : Yes
RoHS compliant : Yes
