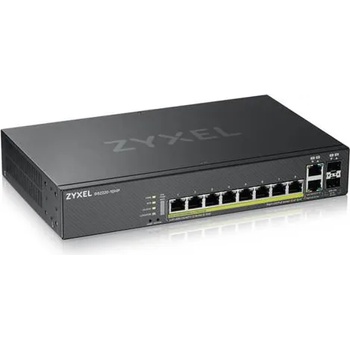

Zyxel GS2220-10HP-EU0101F

ZyXEL GS-2220-10HP





Industry first
tri-mode switch

The GS2220 Series is the first managed hybrid switch with Nebula Cloud management, Standalone management, and SNM



Powerful L2 features

The GS2220 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference and IPTV deployments. Advanced traffic control features of the GS2220 Series such as L2 multicast, IGMP snooping, Multicast VLAN Registration (MVR) provide hotels, businesses, and educational institutions greater agility and more effective traffic management for the converged applications of today.





Tailor-made experience for Networked AV

An intuitive wizard that prompts for high level requirement for network infrastructure, follow up with AI-intelligent to apply all the necessary details to setup a professional AVoIP system. With the intuitive graphical status overview of the key AV network elements such as IGMP and IP information, accompany with condensed function menu help you manage and monitor the system with ease.



  Manage it your way!

The support of Zyxel NebulaFlex Pro allows you to easily switch standalone management and intuitive Nebula cloud management platform with 1-YEAR Pro Pack bundled anytime with just a few simple clicks.



Flexible port combination

The GS2220 Series includes copper ports and combo ports, 50 and 50HP models even come with additional dedicated SFP ports for uplinks. This flexible port combination can fit in every Layer 2 switching applications easily.





DescriptionProduct name 8-port GbE L2 PoE Switch with GbE UplinkLayer 2 Layer 2Port DensityTotal port count 10100/1000 Mbps 8Gigabit Combo (RJ-45/SFP) 2Gigabit SFP -PoE802.3at PoE ports 8Total PoE budget (watts) 180PerformanceSwitching capacity (Gbps) 20Forwarding rate (Mpps) 15Packet buffer (byte) 1.5 MMAC address table 16 KFlash/RAM (MB) 32/256PowerInput 100 - 240 V AC, 50/60 HzMax. power consumption (watt) 210.8Physical SpecificationsDimensions (WxDxH)(mm/in. ) 267 x 162 x 44/ 10.51 x 6.38 x 1.73Weight (kg/lb. ) 1.8/3.97Environmental SpecificationsAcoustic noise (min/max, dBA) 18/41
