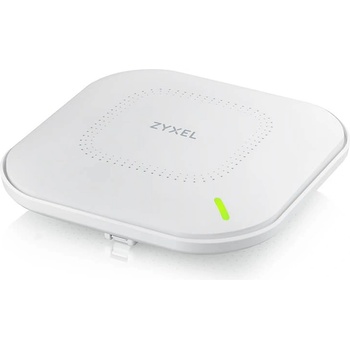

Zyxel NWA110AX-EU0102F 1-Pack















True WiFi 6

The NWA110AX is truly the next generation of wireless (WiFi 6) AP for businesses looking for a most economical upgrade path to 11ax. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO which can’t be found in earlier releases of 802.11ax products















Simpler upgrade path

The NWA110AX has been designed to be highly efficient in PoE budget, allowing for an easy upgrade path for those wishing to experience all that WiFi 6 has to offer without the need to upgrade existing PoE+ switches













Specifications

Product name

802.11ax (WiFi 6) Dual-Radio PoE Access Point

Wireless

Standard: IEEE802.11 ax / ac / n / g / b / a

MIMO: MU-MIMO

Wireless speed: 2.4GHz: 575Mbps, 5GHz: 1200Mbps

Frequency band

2.4 GHz (IEEE 802.11 b / g / n)

Europe (ETSI): 2.412 to 2.462 GHz

5 GHz (IEEE 802.11 a / n / ac)

European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

RF Design

Antenna type: Dual optimized Antenna

Antenna gain:

2.4GHz: Peak Gain 5dBi

5GHz: Peak Gain 6dBi

Minimum Receive sensitivity: Min. Rx sensitivity up to -101 dBm

WLAN feature

Band Steering: Yes

WDS: Future suppoet

Mesh AP (By License): Future Support

Mesh AP for multiple SSID with VLAN: Future Support

Smart mesh: Future Support

Fast roaming: Pre-authentication, PMK caching and 802.11r

DCS (Auto Channel): Yes

Load balancing: Yes

Security

Wireless Security

• WPA


• WPA-PSK


• WPA-Enterprise (WPA / WPA2 / WPA3)

Access management

• L2-isolation


• MAC filtering


• Rogue AP detection

Networking

IPv6: Yes

VLANs: Yes

WMM: Yes

U-APSD: Yes

DiffServ marking: Yes

Physical Specifications

Dimensions (WxDxH) (mm / in. ): 180 x 180 x 39 / 7.09 x 7.09 x 1.54

Weight (g / lb. ): 453g / 1

Packing Dimensions (WxDxH) (mm / in. ): 229 x 216 x 64 / 9.02 x 8.5 x 2.52

Weight (g / lb. ): 770g / 1.7

Physical Interfaces

Ethernet port: 1 x 10/100 / 1000M LAN

Power: PoE (802.3) at: power draw 17 W

DC input: 12 VDC 1.5A
