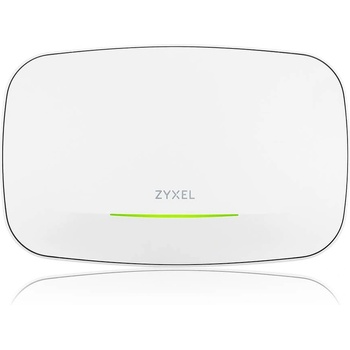

Zyxel NWA110BE-EU0101F

BE6500 4-Stream WiFi 7 Dual-Radio NebulaFlex Access Point​

NWA11 0BE





Future-Proof Your Small Business with WiFi 7

Meet the NWA110BE: a high-performance access point with BandFlex radio design that harnesses the full power of WiFi 7. It combines easy setup and flexibility to future-proof your small/home business networks.





CategoryParameter SpecificationWi reless Standard IEEE 802.11 be/ax/ac/n/g/b/a  MIMO MU-MIMO  Wireless speed 2.4GHz: 688 Mbps 5GHz: 4324 Mbps 6GHz: 5764 Mbps  Frequency band 2.4GHz (FCC): 2.412–2.462 GHz2.4GHz (ETSI): 2.412–2.472 GHz5GHz (FCC): 5.15–5.35, 5.47–5.85 GHz5GHz (ETSI): 5.15–5.35, 5.47–5.725 GHz6GHz (FCC): 5.925–6.425, 6.525–7.125 GHz6GHz (ETSI): 5.925–6.425 GHz  Bandwidth 20, 40, 80, 160, 240, 320 MHz  Conducted TX power (US) 2.4GHz: 26 dBm 5GHz: 28 dBm 6GHz: 25 dBm  Conducted TX power (EU) 2.4GHz: 19 dBm 5GHz: 26 dBm 6GHz: 22 dBmRF Design Antenna type Internal Antenna  Antenna gain 2.4GHz: 1.49 dBi, 2x2:2SS 5GHz: 2.78 dBi, 4x4:2SS 6GHz: 3.17 dBi, 4x4:2SS  Min. receive sensitivity Up to -99 dBmWLAN Features Band steering Yes  WDS/Mesh Yes  Fast roaming Pre-auth, PMK caching, 802.11r/k/v  DCS Yes  Load balancing Yes  Cellular coexistence YesSecurity Encryption WEP, WPA, WPA2, WPA3  Authentication IEEE 802.1X, RADIUS  Access management L2-isolation, MAC filtering, Rogue AP detectionNetworking IPv6 Yes  VLANs Yes  WMM/U-APSD YesManagement Operating mode Cloud managed, Standalone  ZON Utility Zyxel device discovery, batch configuration, firmware, password, Web GUI access  Web UI/CLI Yes  SNMP YesPhysical Specs Dimensions (W×D×H) 250×160×47 mm / 9.84×6.30×1.85 in  Weight 810 g / 1.79 lb  Packing dimensions 279.5×180.5×66 mm / 11.00×7.11×2.60 in  Packing weight 1035 g / 2.28 lb  MTBF 691,722 hrsPhysical Interfaces Ethernet port 1× 1/2.5GbE LAN  Power PoE (802.3at) 21.5 WDC (USB PD) 15 VDC 2A (Type C)  PoE modes 802.3af: No wireless802.3at/bt: Unrestricted
